A bariatric wheelchair is not simply a “bigger” wheelchair. It is a re-engineered chair — heavier-gauge frame, reinforced cross-braces and axles, wider seat, upgraded wheels — built to carry loads a standard chair physically cannot. Choosing one comes down to two questions most guides never answer clearly: how do I measure the user for the right size, and how much weight capacity do I actually need? Get those two right and everything else — comfort, safety, and whether the chair even fits through the doorway — follows.
This guide gives you a real measuring method (with a worked doorway example), an honest breakdown of weight capacity, the four bariatric chair types and when to use each, the features that separate a safe heavy-duty chair from a marketing claim, and a note on insurance coding — all tied to in-stock models.
What makes a wheelchair “bariatric”?
The difference is structural, not cosmetic. Compared with a standard chair, a true bariatric (heavy-duty) wheelchair adds:
- Reinforced frame in heavier-gauge steel, usually with a dual cross-brace on folding models (a single cross-brace does not provide enough structural integrity at high capacity).
- Wider, deeper seat — typically 22” to 30” wide versus ~16–20” on a standard chair.
- Upgraded wheels, tires, axles and bearings to handle the load and roll smoothly.
- Higher weight rating — 350 lb at minimum, ranging up to 1,000 lb.
By contrast, a standard wheelchair is rated for roughly 250–300 lb. Exceeding a chair's rating isn't a gray area — it voids the warranty and, more importantly, risks frame failure during use or a transfer.
How to measure for the right size (the part most guides skip)
The most common bariatric-chair mistake is ordering by the user's clothing size or guessing the seat width. Measure instead — it takes five minutes and prevents an expensive return. Have the user sit in a firm chair, wearing typical clothing, and measure:
- Seat width. Measure across the widest point of the hips and thighs while seated. Add about 2” total (roughly 1” each side) for clothing, movement, and to avoid pressure at the hips. Round up to the next available seat width. Example: 25” widest point → order a 26” or 28” seat.
- Seat depth. Measure from the back of the hips to the back of the knee, then subtract about 1–2” so the seat front doesn't press the back of the knee (which restricts circulation and pushes the user forward).
- Seat-to-floor height. Measure from the back of the knee to the floor (heel) to set a leg-rest/seat height where feet rest properly and thighs are supported — important for pressure distribution and self-propelling.
- Back height. Measure from the seat surface up the back to just below the shoulder blades for an active self-propeller, or to shoulder/head height if more trunk support or reclining is needed.
- Doorway & overall width (do not skip this). Measure your narrowest doorway and hallway turn. A chair's overall width runs about 8–11” wider than its seat width once wheels and frame are counted.
| Measurement | How to take it | Adjustment |
|---|---|---|
| Seat width | Widest point of hips/thighs, seated | Add ~2” total, round up |
| Seat depth | Back of hips to back of knee | Subtract ~1–2” |
| Seat-to-floor height | Back of knee to floor | Match leg-rest/seat height |
| Back height | Seat up to shoulder blades (or higher) | Higher for trunk support/recline |
| Overall width | Use maker's spec vs narrowest door | Seat width + ~8–11” |
Weight capacity: don't cut it close
Bariatric capacities generally run 350–1,000 lb, most often 500, 600, 700, or 750 lb. Two rules:
- Buy above the user's weight, not at it. Transfers, leaning, and propelling create dynamic loads higher than static body weight. Leaving headroom protects both the user and the warranty.
- Capacity often rises with seat width in the same model line. For example, our Dynarex Bari+Max bariatric reclining wheelchair is rated 500 lb in the 24” seat and 750 lb in the 26” and 28” seats — so the sizing and capacity decisions are linked.
The four types of bariatric wheelchair
| Type | Who it's for | Key traits | Trade-off |
|---|---|---|---|
| Standard / self-propel | Users with upper-body strength to push themselves | Large rear wheels, hand rims, folding dual cross-brace | Heavier to lift than transport |
| Transport | Users pushed by a caregiver | Four small wheels, lighter, compact, no self-propel | User cannot self-propel |
| Reclining | Users needing pressure relief, rest, or limited trunk control | Reclining back (often to ~180°), elevating leg rests, headrest | Larger footprint, higher cost |
| Heavy-duty (extra-wide) | Highest weight/width needs | Widest seats (28–30”+), highest ratings (up to ~1,000 lb) | Overall width and doorway fit |

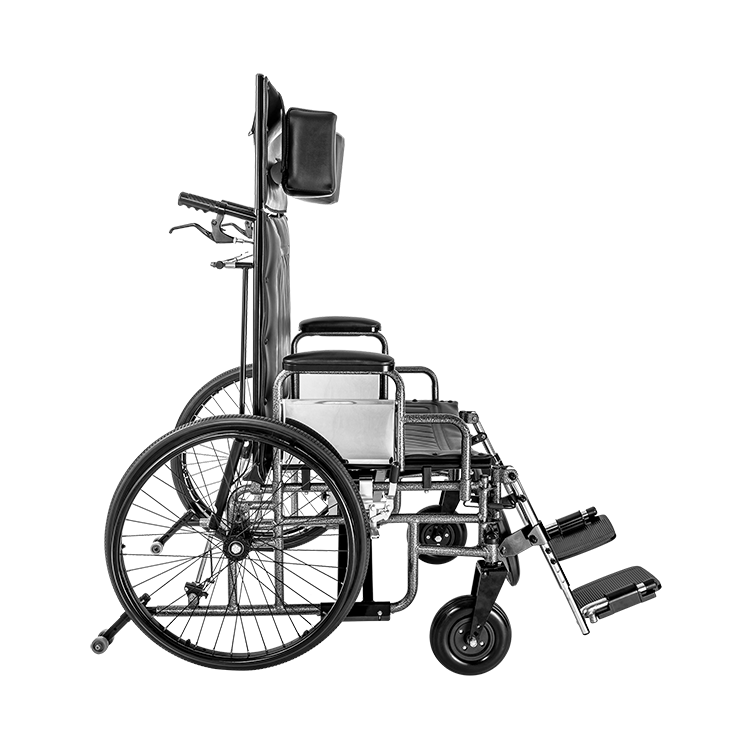

Many users need a blend — for example a reclining and heavy-duty chair. The Dynarex Bari+Max above combines a hydraulic reclining back (adjustable up to ~180° with an anti-hammocking back-bar), tool-free elevating leg rests, and a 750 lb rating. For caregiver-pushed transport at bariatric capacity, see the Dynarex bariatric transport wheelchair (22” x 18”). Browse the full range in Wheelchairs.
Features that actually matter for safety and comfort
- Dual cross-brace: non-negotiable on folding bariatric chairs — it's the structural backbone that keeps the frame square under load.
- Detachable, desk-length arms: make side transfers to a bed or exam table far safer and let the user pull closer to a desk or table.
- Elevating leg rests (ELR): support edema management and comfort; tool-free swing-away versions ease transfers.
- Reinforced wheels & caster forks: larger, sealed-bearing casters resist bending and roll better on carpet and thresholds.
- Anti-tippers: add rear stability — especially valuable on reclining and higher-capacity chairs.
- Transport weight & fold: if the chair goes in a car, check its own weight and whether it folds; heavy-duty steel chairs are substantial.
- Upholstery: reinforced, easy-to-clean padded vinyl or nylon that suits the setting and cleaning protocol.
Insurance & HCPCS coding
If you are billing a payer or Medicare, bariatric wheelchairs are reimbursed under specific Healthcare Common Procedure Coding System (HCPCS) codes based on features and capacity — for instance, our Bari+Max reclining model references HCPCS E1050 (a fully-reclining heavy-duty configuration with elevating leg rests). Exact coding depends on seat width, capacity, and options, and documentation of medical necessity is usually required. Confirm the correct code and coverage with your DME supplier or payer before you order.
Compare in-stock models
Representative Dynarex chairs across the range. Prices are current Mediplies list and vary by seat size and options.
| Model | Type | Seat width | Capacity | Price (from) |
|---|---|---|---|---|
| DynaRide Transport | Transport | Standard | Standard duty | ~$174 |
| Bariatric Transport 22” | Transport, bariatric | 22” | Heavy-duty | ~$331 |
| DynaRide Reclining | Reclining | Standard | Standard duty | ~$407 |
| Bari+Max Bariatric Reclining | Reclining, heavy-duty | 24 / 26 / 28” | 500 lb (24”), 750 lb (26/28”) | ~$988 |
Frequently asked questions
How do I know what seat width to order?
Measure across the widest point of the hips and thighs while the user is seated in normal clothing, then add about 2” total and round up to the next available width. That usually lands on a 22–30” seat. Too narrow causes pressure and skin issues; too wide reduces stability and self-propelling efficiency.
What weight capacity does a bariatric wheelchair have?
Generally 350 to 1,000 lb, most commonly 500–750 lb, versus about 250–300 lb for a standard chair. In many model lines the wider seat carries a higher rating. Always choose capacity above the user's weight to allow for the dynamic loads of transfers and movement.
Will a bariatric wheelchair fit through a standard doorway?
Not always. A chair's overall width runs roughly 8–11” wider than its seat, so a 24”-seat chair can be ~32–35” overall against a ~32” door opening. Compare the manufacturer's published overall width to your narrowest doorway before buying.
Why does a bariatric chair need a dual cross-brace?
The cross-brace keeps a folding frame rigid under load. A single cross-brace can flex or fail at high weight capacities, so reputable bariatric folding chairs use a dual cross-brace for structural integrity.
Should I choose a self-propel or transport bariatric chair?
Choose self-propel (large rear wheels, hand rims) if the user has the upper-body strength to push themselves. Choose transport (four small wheels, lighter, more compact) if a caregiver will always push the chair.
Are bariatric wheelchairs covered by insurance?
Often, when medically necessary. They are billed under specific HCPCS codes tied to features and capacity, and documentation is usually required. Confirm the exact code and coverage with your DME supplier or payer.
Find the right heavy-duty chair
Shop bariatric, reclining, transport, and standard wheelchairs — with the seat widths and weight ratings that fit your patient or loved one. Browse the full Wheelchairs collection, or tell our team the user's measurements and weight and we'll help you size it right the first time.
Measurements and capacities are general guidance; always follow each manufacturer's fitting instructions and published specifications. This article is equipment-selection guidance, not medical advice — consult a clinician or seating specialist for individual needs.
