If your practice stores vaccines, insulin, biologics, or lab reagents, the refrigerator holding them is not an appliance decision — it is a compliance and inventory-risk decision. A single overnight temperature excursion can compromise an entire shelf of vaccine and, for VFC providers, trigger a reportable event. Yet the most common cold-chain mistake is still the same one: storing medical product in a dorm-style or household refrigerator that was never engineered to hold a tight, uniform temperature.
This guide explains, in plain terms, the real engineering difference between a medical-grade (pharmacy/laboratory) refrigerator and a standard one, what the CDC and the Vaccines for Children (VFC) program actually require, how to size a unit for your caseload, and which configuration makes sense for different clinical settings — with honest price ranges.
Why a household refrigerator fails the cold chain
A residential refrigerator is optimized for food and for energy efficiency, not for holding a narrow, stable band around +5°C. Three physical realities make it a poor fit for medical product:
- Cold-wall (passive) cooling stratifies the cabinet. Cooling comes off a cold rear wall, so the interior forms temperature layers. One shelf can read +7°C while another dips below +2°C at the same moment.
- Freeze risk on the top shelves. The burst of cold air right after the door closes can drive upper-shelf product below freezing. Many routine vaccines lose potency permanently once frozen — and a freeze event is often invisible without continuous logging.
- Slow recovery after door openings. A household unit may need 30–60 minutes to return to setpoint after a single opening. A medical-grade unit typically recovers in about 3–5 minutes because forced air actively circulates chilled air across the whole volume.
Medical refrigerators are built the opposite way: a larger compressor, a fan-forced air system that distributes temperature evenly, and a sensitive digital controller that holds the setpoint tightly. That is the entire ballgame for cold-chain integrity.
| Attribute | Household / dorm-style refrigerator | Medical-grade (pharmacy/lab) refrigerator |
|---|---|---|
| Cooling method | Cold-wall / passive | Forced-air (fan-circulated) |
| Temperature uniformity | Stratified; wide top-to-bottom spread | Even across the full storage volume |
| Control accuracy | Roughly ±3–5°C, dial thermostat | Roughly ±1°C, microprocessor digital |
| Recovery after door-open | ~30–60 minutes | ~3–5 minutes |
| Temperature display | None (or coarse dial) | External digital display, min/max memory |
| Alarms | None | High/low temp, door-ajar, power-failure, sensor-failure |
| Probe | Air sensor only | Buffered (glycol) probe that mimics product temperature |
| Security | None | Factory lock, keyed |
| CDC / VFC posture | Dorm-style prohibited; household allowed only as a last resort, fridge compartment only | Preferred (purpose-built / pharmaceutical-grade) |
What “medical-grade” actually means (and NSF/ANSI 456)
“Medical-grade” and “pharmacy-grade” are marketing terms with no single legal definition — which is exactly why a certification standard exists. NSF/ANSI 456 is the Vaccine Storage standard, published in 2021 by a joint committee of clinicians, public-health agencies, equipment makers, and vaccine manufacturers. It is the objective way to separate a genuinely capable unit from a repainted beverage cooler.
Rather than testing a unit in a lab-perfect vacuum, NSF/ANSI 456 evaluates whether a refrigerator can hold and recover its temperature across the whole storage space under realistic stress — repeated door openings, ambient swings, and power interruptions — and whether its monitoring behaves correctly. When a unit is certified to NSF/ANSI 456, you are buying tested performance, not a spec-sheet promise. On product pages we flag this explicitly; see, for example, our Accucold Performance Series Pharma-Vac all-refrigerator certified to NSF/ANSI 456.
Two tiers sit under the “medical-grade” umbrella:
- Purpose-built / pharmaceutical-grade: designed from the ground up for +2 to +8°C storage — forced air, microprocessor control, buffered probe, alarms, data-logging ports. This is what the CDC recommends and what a VFC program expects.
- Stand-alone household-grade: a single-purpose (refrigerator-only) consumer unit. The CDC allows it only as a last resort when a purpose-built unit is unavailable, and only the refrigerator compartment of any combination unit may ever be used.
What the CDC and VFC actually require
You do not have to guess. The CDC Vaccine Storage and Handling Toolkit sets out clear expectations that most state VFC programs enforce. In equipment terms, the core requirements are:
- Stand-alone units. Separate, single-purpose refrigerator and freezer units are the standard. Purpose-built / pharmaceutical-grade is preferred.
- Dorm-style and bar-style combination units are prohibited for storing any vaccine — no exceptions. These units have a single compressor and an evaporator plate that create severe freeze zones.
- Refrigerator temperature: +2°C to +8°C, with +5°C as the target midpoint. Freezer: −50°C to −15°C for frozen formulations.
- Continuous monitoring with a Digital Data Logger (DDL) that has a buffered probe, records at least every 30 minutes, and carries a current Certificate of Calibration (NIST-traceable), typically re-calibrated every 1–2 years. Keep a backup DDL.
- No food or drink stored with vaccines, and adequate spacing for air circulation (do not overfill or block the fan).
How to size the refrigerator for your caseload
Under-buying capacity is the second most common mistake after buying the wrong type. Base capacity on your peak inventory, not your average, and add headroom so air can move.
- Estimate peak stored volume. Count doses/vials at your busiest point of the year (e.g., flu-season peak plus routine childhood series), then add space for diluents and any refrigerated medications.
- Add a 25–30% buffer. Never plan to fill a unit to the walls — forced-air units need airflow around product to stay uniform.
- Match the footprint to the room. An ADA-height under-counter unit (about 32–33” tall) slides beneath a standard counter; an upright glass-door unit maximizes volume where floor space allows.
As a rough planning guide: many single-provider or small primary-care sites land in the 4–8 cu ft range, specialty and mid-size practices in 12–18 cu ft, and high-volume clinics, pharmacies, and public-health programs at 20+ cu ft.
What clinics actually need, by setting
Here is how the sizing translates into real, in-stock configurations and honest price bands. Prices shown are current Mediplies list prices for representative Accucold models and will vary by options (data logger, drawers, glass vs solid door).
| Setting | Recommended type | Capacity | Typical price | Representative model |
|---|---|---|---|---|
| Solo provider / exam-room point of care | Compact ADA under-counter, solid door | ~1–4 cu ft | ~$1,600–$2,000 | Accucold FF28LWHMED2 compact all-refrigerator |

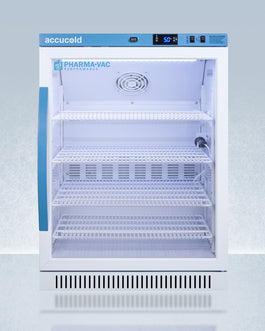

| Primary care / small clinic | ADA under-counter vaccine fridge, glass door | 6 cu ft | ~$2,000–$2,600 | Accucold ARG6PV 6 cu ft ADA vaccine refrigerator |
| Busy / multi-provider practice | Upright glass-door vaccine refrigerator | 15 cu ft | ~$3,600–$4,500 | Accucold ARG15PV 15 cu ft upright vaccine refrigerator |
| Pharmacy / public-health / hospital | Large upright glass-door | 18–49 cu ft | ~$4,400–$6,800 | Accucold ARG18PV 18 cu ft upright vaccine refrigerator |
| Frozen vaccines / lab reagents | Purpose-built medical freezer (−50 to −15°C) | Varies | From ~$1,300 | See Pharmacy Freezers |
Glass door vs. solid door? A glass door lets staff verify contents without opening — fewer, shorter openings — and is popular for vaccine storage. A solid door offers marginally better insulation and lower cost, and suits back-of-house pharmacy storage. Both are fully medical-grade when purpose-built. Browse the split by door type in Glass Door Pharmacy Refrigerators and Solid Door Pharmacy Refrigerators.
Installation & placement checklist
- Dedicated circuit. Put the unit on its own outlet; avoid GFCI/switched outlets that can trip and silently cut power. Label the breaker “Do Not Unplug.”
- Ventilation clearance. Leave the manufacturer-specified gap at the back and sides so the compressor can shed heat — under-counter units need front-vented designs for enclosed installs.
- Stable ambient. Keep the unit out of direct sun and away from heat sources; extreme room temperatures degrade any compressor's ability to hold setpoint.
- ADA height where needed. ADA-height units (~32–33”) fit under standard counters and improve reach access.
- Backup power / monitoring. Consider an alarm that notifies staff after hours, and document your excursion-response plan before you load product.
Frequently asked questions
Can I store vaccines in a regular household refrigerator?
A dorm-style or bar-style combination unit is prohibited by the CDC for any vaccine. A stand-alone (refrigerator-only) household unit is permitted only as a last resort when a purpose-built unit is unavailable, and only the refrigerator compartment may be used. For reliable compliance, a purpose-built medical refrigerator is strongly recommended.
What temperature should a vaccine refrigerator hold?
+2°C to +8°C, with +5°C as the target midpoint. Frozen vaccines are stored separately in a freezer rated −50°C to −15°C. Always confirm against each product's package insert.
What is NSF/ANSI 456?
It is the 2021 vaccine-storage certification standard. A unit certified to NSF/ANSI 456 has been tested to hold and recover temperature across its full storage volume under realistic conditions, giving you verified performance rather than an unregulated “medical-grade” label.
Do I need a data logger, or is a built-in thermometer enough?
The CDC calls for a continuous-monitoring Digital Data Logger (DDL) with a buffered probe, recording at least every 30 minutes, with a current NIST-traceable calibration certificate. A unit's built-in display is useful but does not replace a DDL. Several of our models are available with a factory data logger (the “DL2B” suffix).
How big a refrigerator do I need?
Size to your peak inventory plus a 25–30% airflow buffer. Small primary-care sites often use 4–8 cu ft; specialty and mid-size practices 12–18 cu ft; pharmacies and public-health programs 20+ cu ft.
Can I keep staff lunches or specimens in the same unit?
No. Vaccine storage units should hold vaccines (and, where appropriate, other refrigerated medications) only — no food, drink, or unrelated specimens — both for contamination control and to limit door openings.
Glass door or solid door — which is better?
Glass doors let staff see inventory without opening the unit, reducing temperature disturbance, and are common for vaccines. Solid doors insulate slightly better and cost less. Choose based on how often staff need to view contents.
Ready to spec the right unit?
Browse purpose-built, CDC-aligned refrigeration built for the cold chain — compact ADA under-counter units through 49 cu ft uprights, glass or solid door, with data-logger options. Start with Pharmacy & Vaccine Storage or see everything in All Medical Refrigerators. Not sure which size fits your caseload? Our team can help you match capacity, door type, and monitoring to your setting.
Sources referenced for standards in this guide include the CDC Vaccine Storage and Handling Toolkit, the NSF/ANSI 456 Vaccine Storage standard, and manufacturer specifications. This article is for equipment-selection guidance only and is not clinical or regulatory advice.
