Medical Storage Cabinet Types: Stainless, Scope & Supply Explained
“Medical cabinet” covers a surprising range of purpose-built furniture, from a steel narcotics locker to a HEPA-filtered endoscope drying cabinet costing forty thousand dollars. Each type is engineered for a specific job: security, general supply storage, sterile-processing support, or specimen handling. Buy the wrong category and you either overpay for capability you don't need or fail a requirement you didn't know applied. This guide explains the main types, what sets them apart, and which real models fit each role.
The main medical cabinet types
1. Narcotic / controlled-substance cabinets
Heavy-gauge steel cabinets built to be anchored and locked, for storing controlled substances per DEA and state-board rules. The key spec is the locking configuration, single-lock for baseline storage, double-lock (two barriers) for Schedule II and where boards require it. See our dedicated narcotics cabinet buying guide for the compliance detail, or the single-door double-lock narcotic cabinet.
2. Supply & storage cabinets

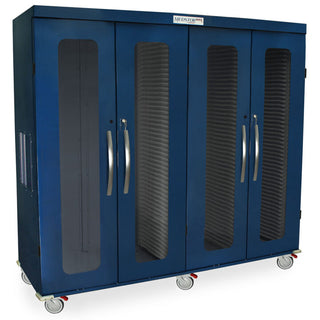

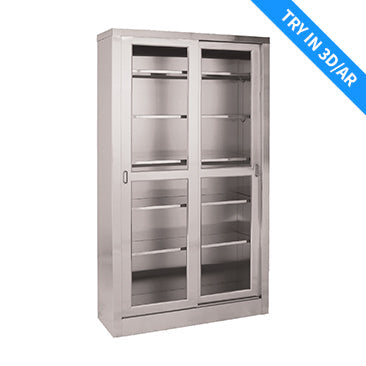

General-purpose cabinets for medications, consumables, and equipment. In clinical settings these are usually stainless steel (durable, cleanable, corrosion-resistant) and come fixed or mobile, with key or electronic push-button locking for access control. Options range from a large instrument storage and supply cabinet to a full-height large stainless storage cabinet and mobile columns in our Stainless Steel Storage Cabinets range.
3. Scope / endoscope drying & storage cabinets
A specialized and often misunderstood category. After a flexible endoscope is reprocessed, it must be dried and stored hanging vertically to prevent residual moisture that can support microbial growth. Dedicated scope cabinets circulate HEPA-filtered air through the scope channels and store them in a controlled environment, supporting flexible-endoscope processing recommendations (e.g., ANSI/AAMI ST91). These are precision units, examples include Harloff SureDry cabinets like the SureDry painted-steel scope cabinetwith a full range in Scope & Endoscope Cabinets.
4. Instrument & treatment cabinets
Cabinets sized to hold sterile trays, instruments, and treatment-room supplies, often with a mix of drawers and shelves and glass or solid doors. They keep frequently used items organized and within reach at the point of care. A slope-top design (like the UMF large slope-top cabinet) sheds dust and discourages clutter on top.
5. Specimen pass-thru cabinets
Built into a wall between a patient/collection room and the lab, a pass-thru cabinet lets specimens move across without staff walking them around, improving workflow and reducing traffic in clean areas. A compact, budget option is a compact stainless steel storage cabinet.
Cabinet types compared
| Type | Primary job | Typical locking | Material | Price band |
|---|---|---|---|---|
| Narcotic cabinet | Secure controlled substances | Single or double lock | Steel | ~$640, $1,200 |
| Supply / storage cabinet | General stock, meds, equipment | Key or electronic | Stainless steel | ~$3,600, $9,800 |
| Scope / endoscope cabinet | Dry & store reprocessed scopes | Key / controlled access | Painted or stainless steel | ~$3,500, $40,000 |
| Instrument / treatment cabinet | Trays, instruments, supplies | Key or glass display | Stainless steel | ~$3,600, $8,700 |
| Specimen pass-thru | Move samples between rooms | Interlocking doors | Composite / steel | ~$150+ |
How to choose
- Start with the job. Security, general storage, scope drying, and specimen transfer are different problems, pick the category built for yours before comparing prices.
- Material: stainless steel is the clinical standard for cleanability and corrosion resistance; painted steel is fine for lower-moisture, general storage.
- Locking & access: key locks are simple; electronic push-button/keypad locks add an access trail; double-lock is for controlled substances.
- Mobile vs. fixed: mobile columns flex with changing workflows; wall-anchored cabinets maximize security and free the floor.
- Ventilation matters for scopes only: a general supply cabinet cannot substitute for a HEPA-filtered scope drying cabinet.
Frequently asked questions
What kind of cabinet do I need for controlled substances?
A securely locked, substantially constructed steel cabinet, anchored in place, single-lock for baseline storage and double-lock for Schedule II or where your state board requires two barriers. See our narcotics cabinet buying guide for details.
Why do endoscopes need a special cabinet?
After reprocessing, flexible endoscopes must be dried and stored hanging vertically to prevent residual moisture that can support microbial growth. Scope cabinets circulate HEPA-filtered air through the channels and store scopes in a controlled environment, supporting standards such as ANSI/AAMI ST91. A general supply cabinet cannot do this.
Stainless steel or painted steel?
Stainless steel is the clinical standard for cleanability and corrosion resistance, ideal for supply, instrument, and sterile-adjacent storage. Painted steel is acceptable for lower-moisture general storage and some security cabinets.
Should I choose a mobile or wall-mounted cabinet?
Mobile columns adapt to changing workflows and can follow the point of care; wall-anchored cabinets maximize security (important for narcotics) and keep the floor clear. Many facilities use both.
What is a specimen pass-thru cabinet?
A cabinet built into a wall between a collection room and the lab, with interlocking doors, so specimens pass through without staff carrying them around, improving workflow and reducing traffic in clean areas.
Find the right cabinet for the job
Browse security, supply, instrument, and scope cabinets in our Cabinets collection, including Scope & Endoscope CabinetsStainless Steel Storage Cabinetsand Narcotic Lockers. Not sure which category fits? Our team can help.
Standards references (DEA 21 CFR 1301.75; ANSI/AAMI ST91) are general. This article is product-selection guidance, not compliance or clinical advice, verify requirements for your setting.
