ALED 100 Dual Ceiling

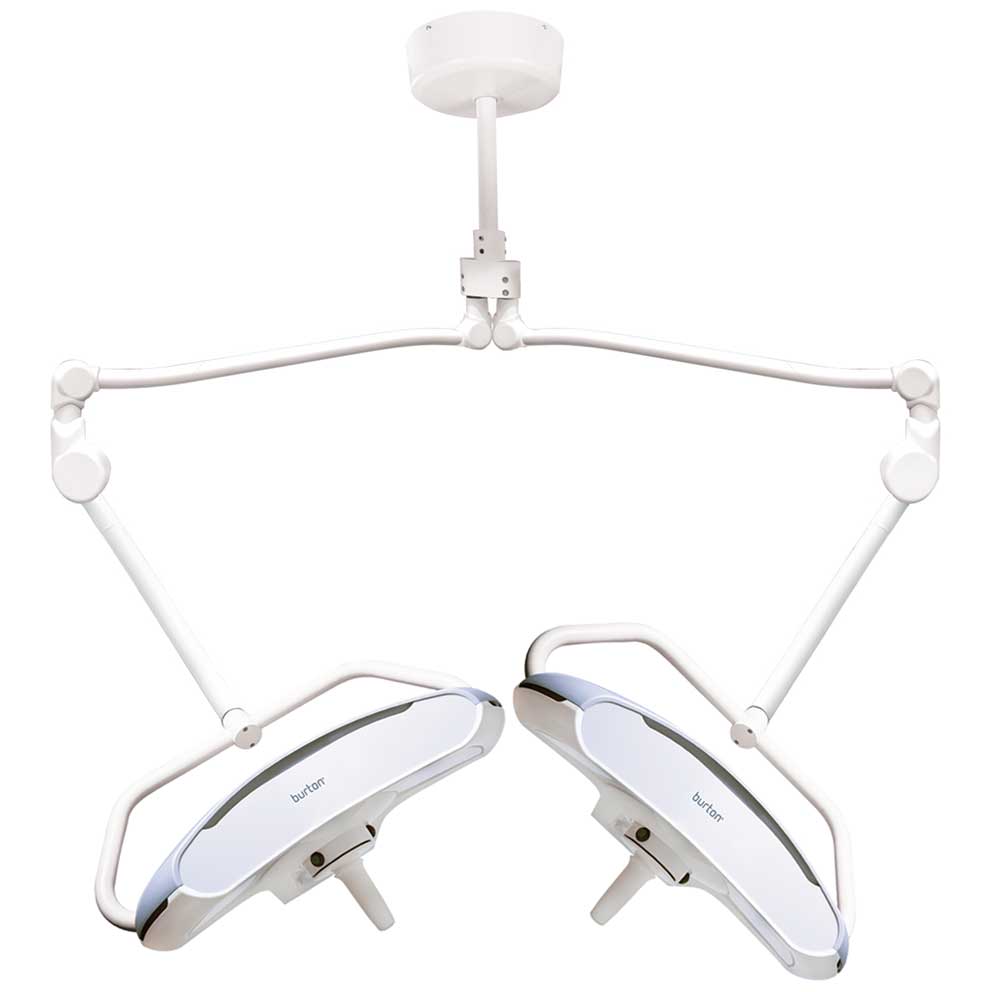

The Burton AIM HI LED Examination Light — ALED100, Dual Ceiling Mount gives a procedure or exam room two independently-positionable, high-output LED light heads from a single ceiling installation. Each head delivers up to 100,000 lux at one meter, making this dual-mount configuration a popular choice for shared two-bay exam suites, minor procedure and suture rooms, urgent care, dermatology, and wound care settings where staff need to illuminate two separate work areas — or aim two lights at different angles on a single busy exam table — without installing two completely separate light systems.

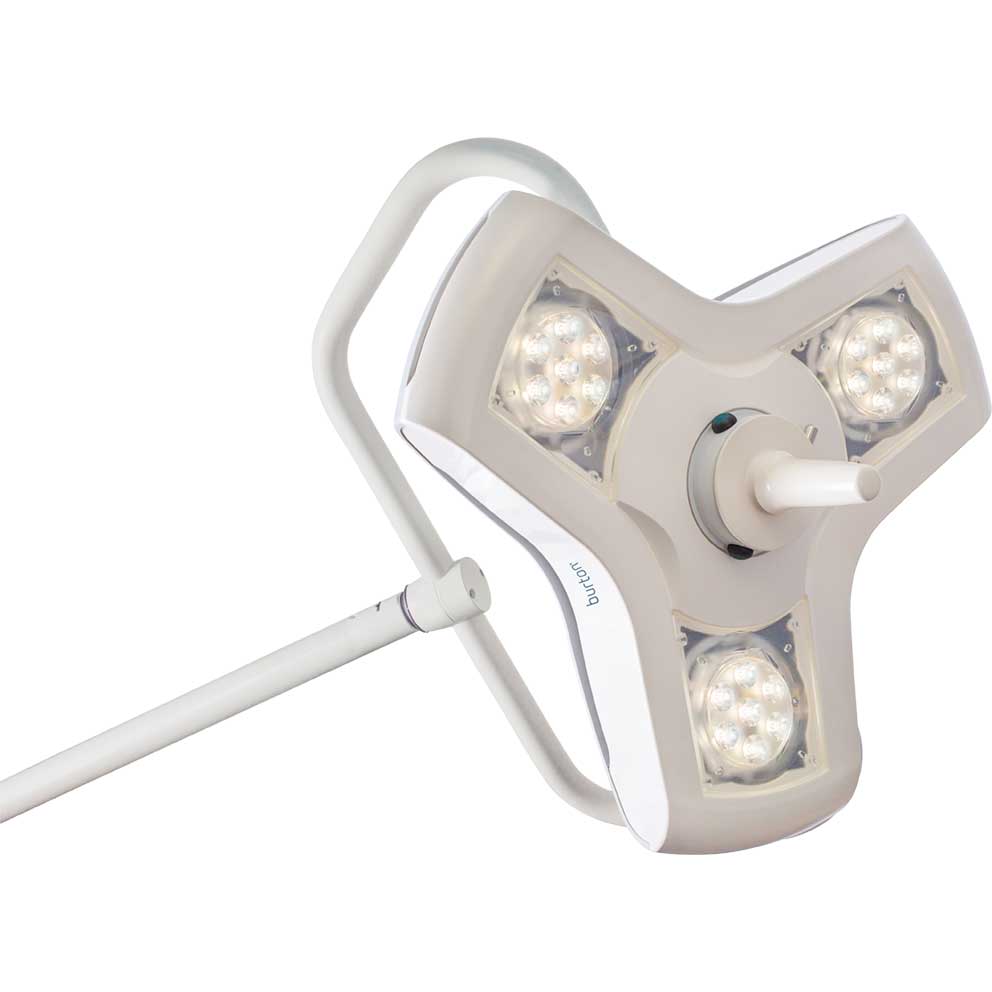

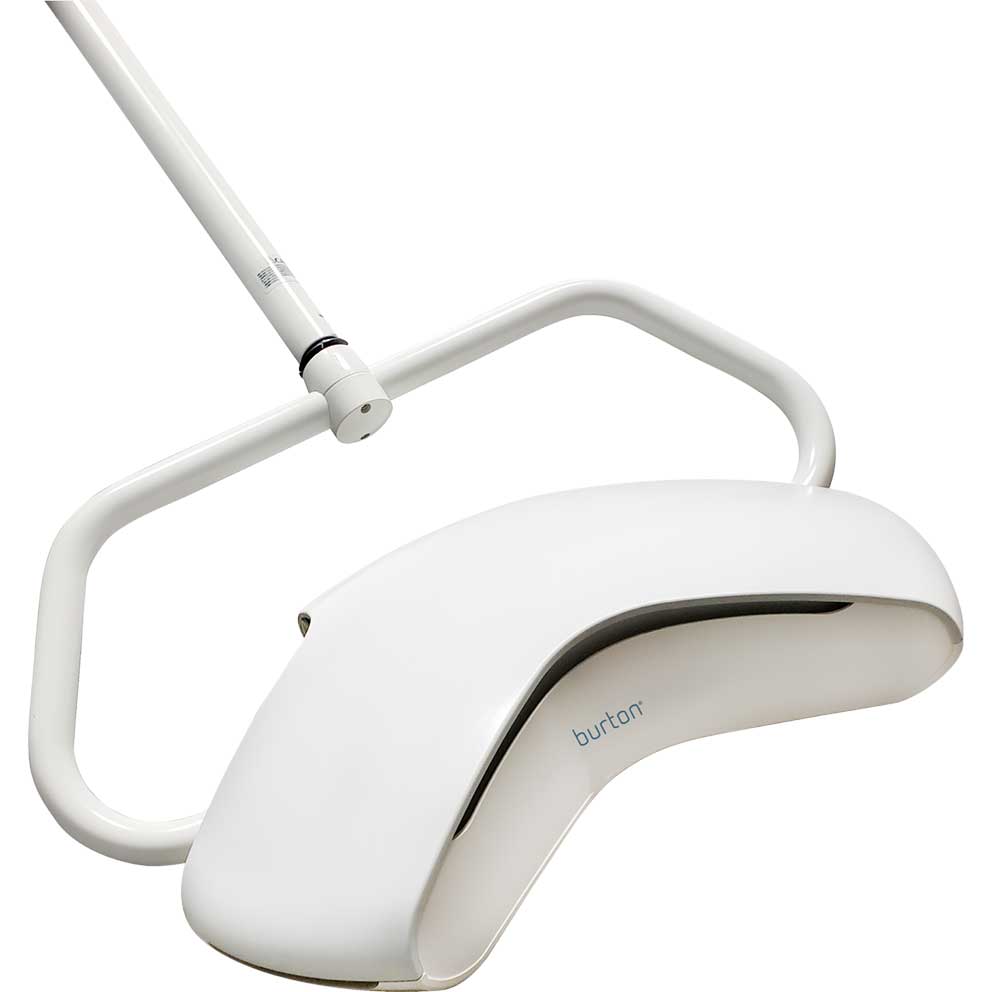

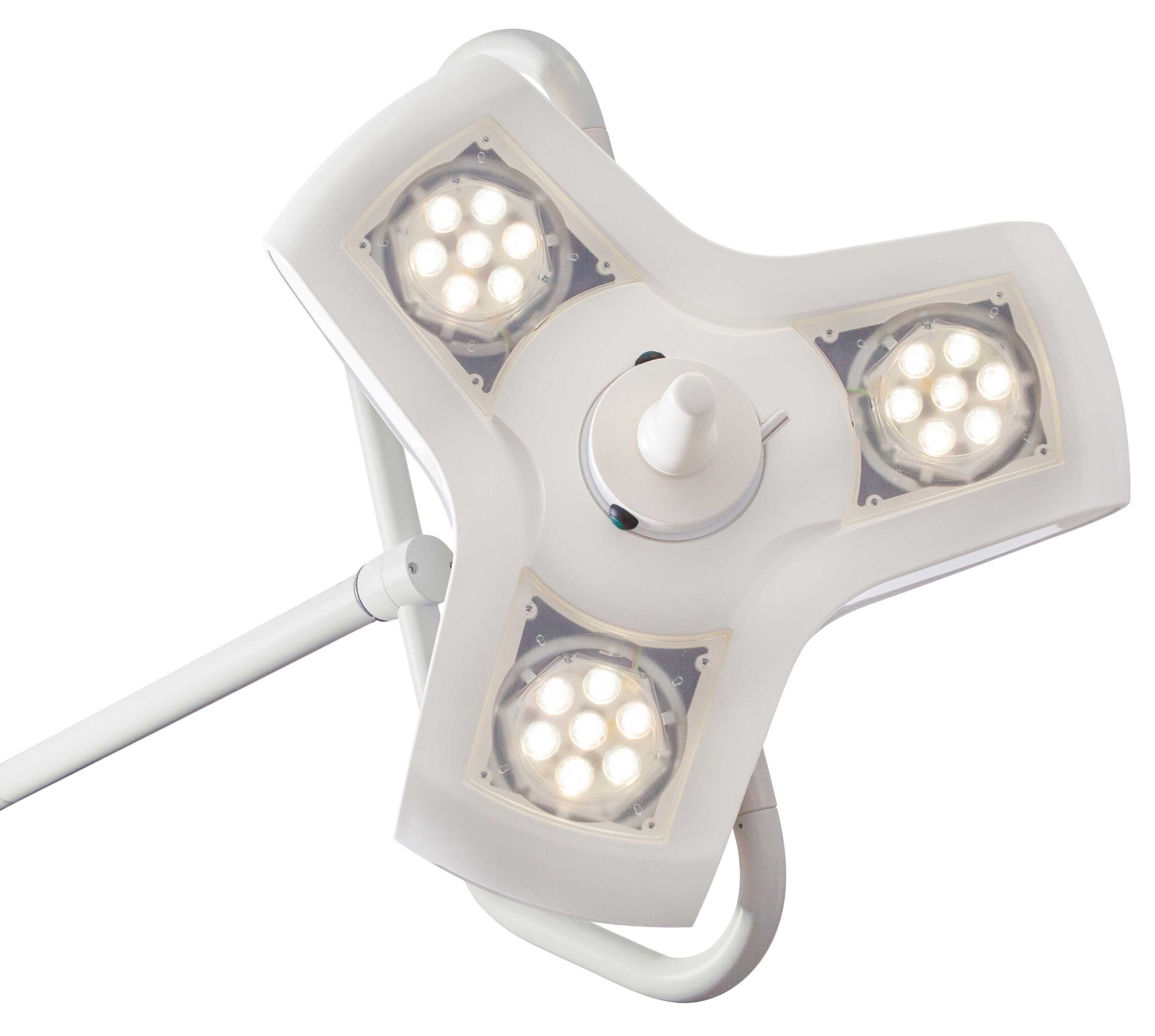

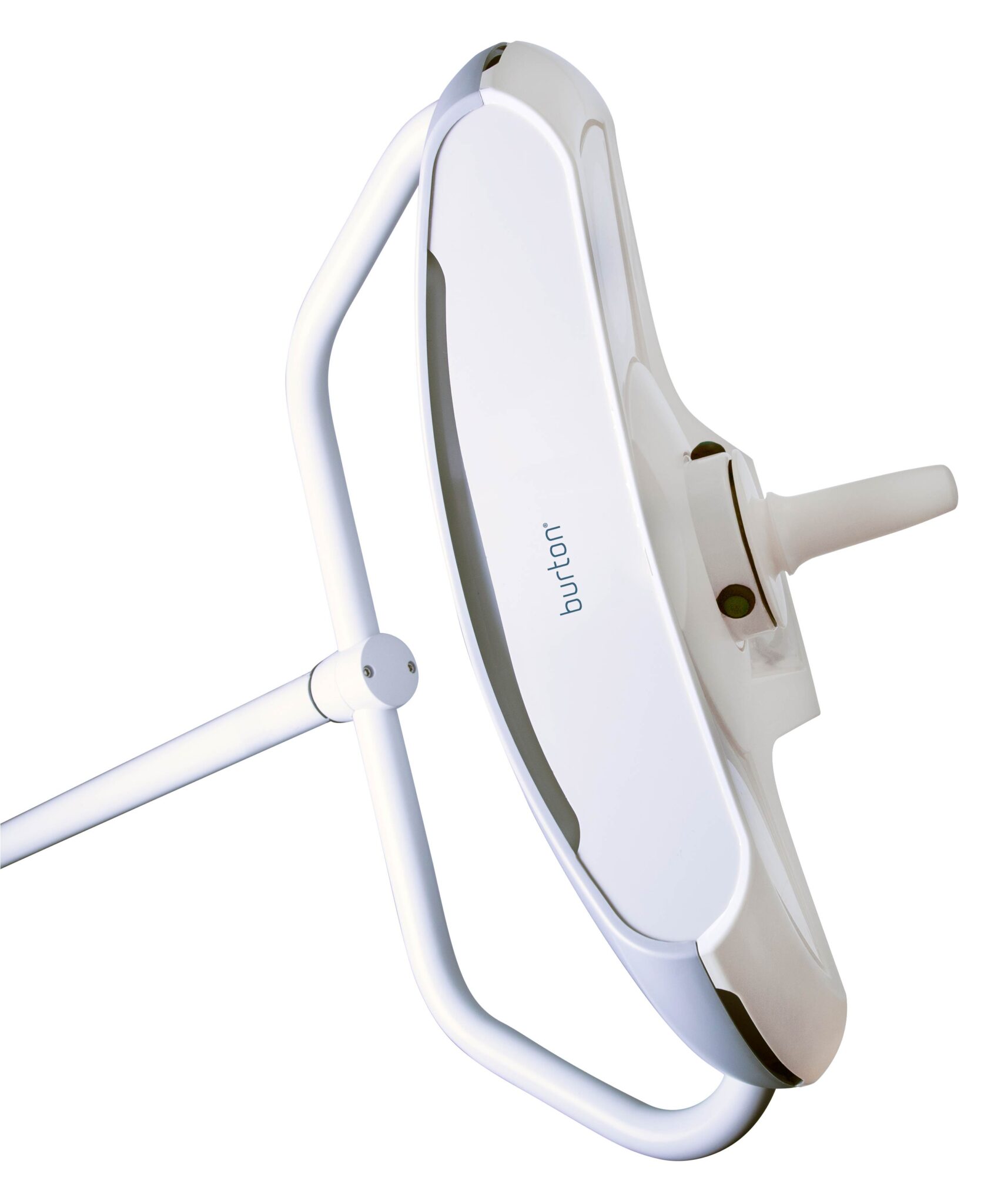

Each AIM HI LED head uses a 3-module LED array delivering 100,000 lux (9290 fc) at one meter with a 4300 Kelvin color temperature and a CRI greater than 95 for accurate tissue and wound assessment. Three-step push-button dimming (100% / 75% / 50%) is built into the light head handle for quick adjustment mid-procedure, and Burton's distinctive Y-shaped head design lets the light be positioned around the practitioner's own head and shoulders, reducing the cast shadows that a bulkier round head would throw across the field. Rotating the removable, sterilizable center handle adjusts the reflectors to widen or narrow the light pattern — from a focused 10 in (25 cm) beam out to a broader field — over a 47 in (119 cm) depth of field.

Burton's drift-free arm and mounting system gives each head in this dual-ceiling configuration up to 63 in (160 cm) of reach with smooth, no-drift repositioning, and ceiling down tubes are field-trimmable and available in different lengths to match ceilings up to and above 10 feet. The sterilizable/autoclavable handle can be swapped for disposable sterile handle covers between patients, and each head draws just 45 watts, with LED modules rated for 50,000 hours of service life — years of near-maintenance-free operation in a high-use exam room.

The ALED100DC is listed to IEC 60601-1, IEC 60601-1-2, IEC 60601-2-41, and IEC 60601-1-6, assembled in the USA, and backed by Burton's 5-year limited warranty along with membership in the EnabLED licensing program for LED luminaires. Mediplies stocks the Burton AIM HI LED Dual Ceiling light for clinics and surgical centers that want two independently-aimed, hospital-grade LED exam lights installed from a single ceiling mount.
