- 160,000 lux maximum illuminance at 1 meter, per light head
- Color temperature ~4100K with CRI greater than 97 for accurate tissue color rendition
- Tri-lobe LED design (12 modules, 6 LEDs each) for superior shadow reduction
- Dual ceiling-mounted 22" light heads, 13 lbs each, with 700 mm / 850 mm arm lengths
- Unlimited arm rotation, spring-balanced suspension, up to 75° vertical tilt
- 5 dimming levels plus dedicated Endo Mode for minimally invasive procedures
- 50,000+ hour rated LED service life
- FDA registered, ISO 13485 compliant, UL/IEC and CE certified; assembled in the USA
APEX LED Surgical Light- Dual Light, 700 mm, 850 mm (Model AP160A03)

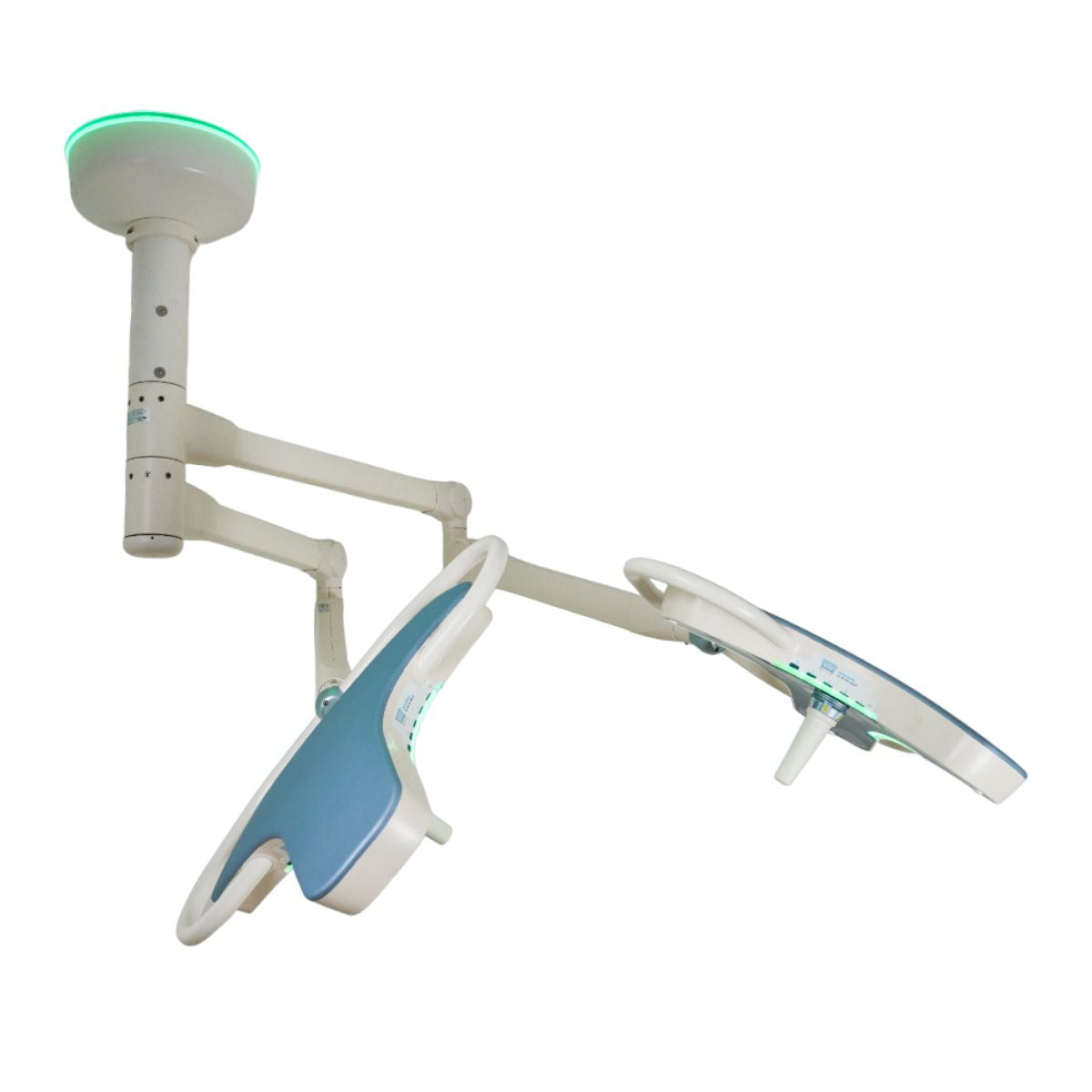

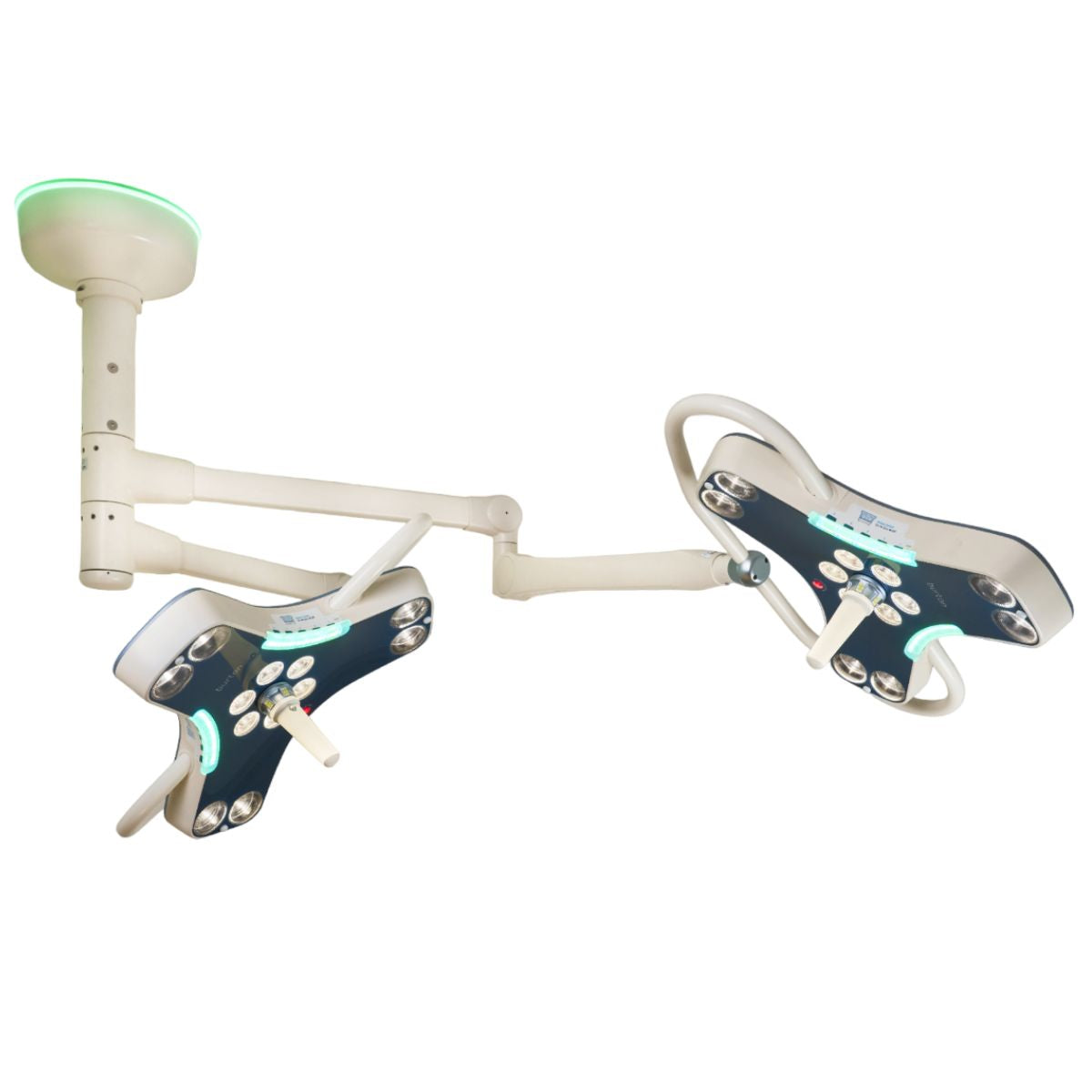

The Burton APEX LED Surgical Light AP160A03 is a dual ceiling-mounted LED surgical light designed to provide two independently adjustable light heads over an operating field. Each 22" diameter head produces up to 160,000 lux at 1 meter with a color temperature of approximately 4100K and a CRI greater than 97, delivering bright, shadow-reduced, true-color illumination for general surgery and specialty procedures.

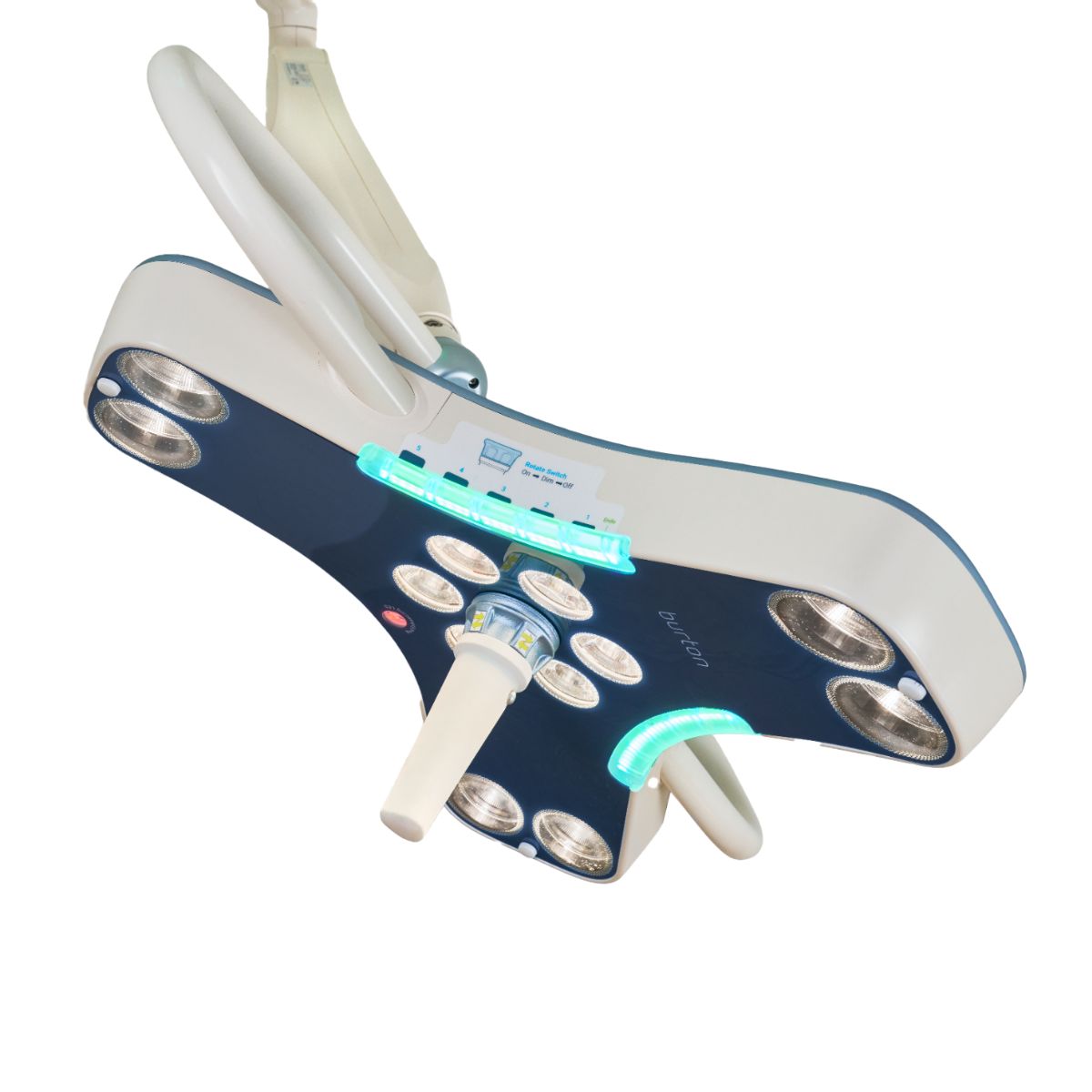

Burton's tri-lobe LED technology, built from 12 modules of 6 LEDs per head, is specifically engineered to minimize shadows cast by surgeons' hands and instruments. This AP160A03 configuration is fitted with 700 mm and 850 mm arm lengths, suited to standard operating room ceiling heights. Each light head weighs 13 lbs and mounts on a spring-balanced arm with unlimited rotation and up to 75° of vertical adjustment, with 5 dimming levels and a dedicated Endo Mode for endoscopic and minimally invasive work.
Rated for 50,000+ hours of LED service life, the APEX LED is built to run virtually maintenance-free. It is FDA registered, ISO 13485 compliant, and UL/IEC and CE certified, and is assembled in the USA. It's a strong fit for surgical facilities looking to upgrade to a lightweight, high-output, low-heat LED lighting system backed by Burton's manufacturer warranty.
| Model | AP160A03 |
|---|---|
| Brand | Burton (APEX LED) |
| Configuration | Dual light head, ceiling mount |
| Illuminance | 160,000 lux at 1 meter (per head) |
| Color Temperature | ~4100K |
| CRI | Greater than 97 |
| Light Head Diameter | 22 in (56 cm) |
| Light Head Weight | 13 lbs (5.9 kg) each |
| Arm Lengths | 700 mm and 850 mm |
| LED Service Life | 50,000+ hours |
| Dimming Levels | 5, plus Endo Mode |
| Certifications | FDA registered, ISO 13485, UL/IEC, CE |
| Warranty | 5-year limited manufacturer's warranty |
| Brand / Manufacturer | Burton |
| Category | Surgical Lights |
| Model / SKU | AP160A03 |
| Availability | In stock — ships from the USA |
| Warranty | Manufacturer warranty · Mediplies price-match |
| Shipping | Free shipping · freight or parcel by size |
Specifications sourced from the manufacturer. Need a detail that isn't listed? Ask our team →
