- Dual light heads on long 700 mm and 850 mm arms, double ceiling mount
- Up to 160,000 lux illuminance per head
- 4100K color temperature with CRI greater than 97
- 5 dimming levels: 100,000 / 115,000 / 130,000 / 140,000 / 160,000 lux
- Endo Mode for minimally invasive/endoscopic procedures
- Unlimited arm rotation for flexible positioning
- 50,000+ hour LED service life
- Assembled in the USA
APEX LED Surgical Light- Dual Light, 700 mm, 850 mm, Long (Model AP160A22)

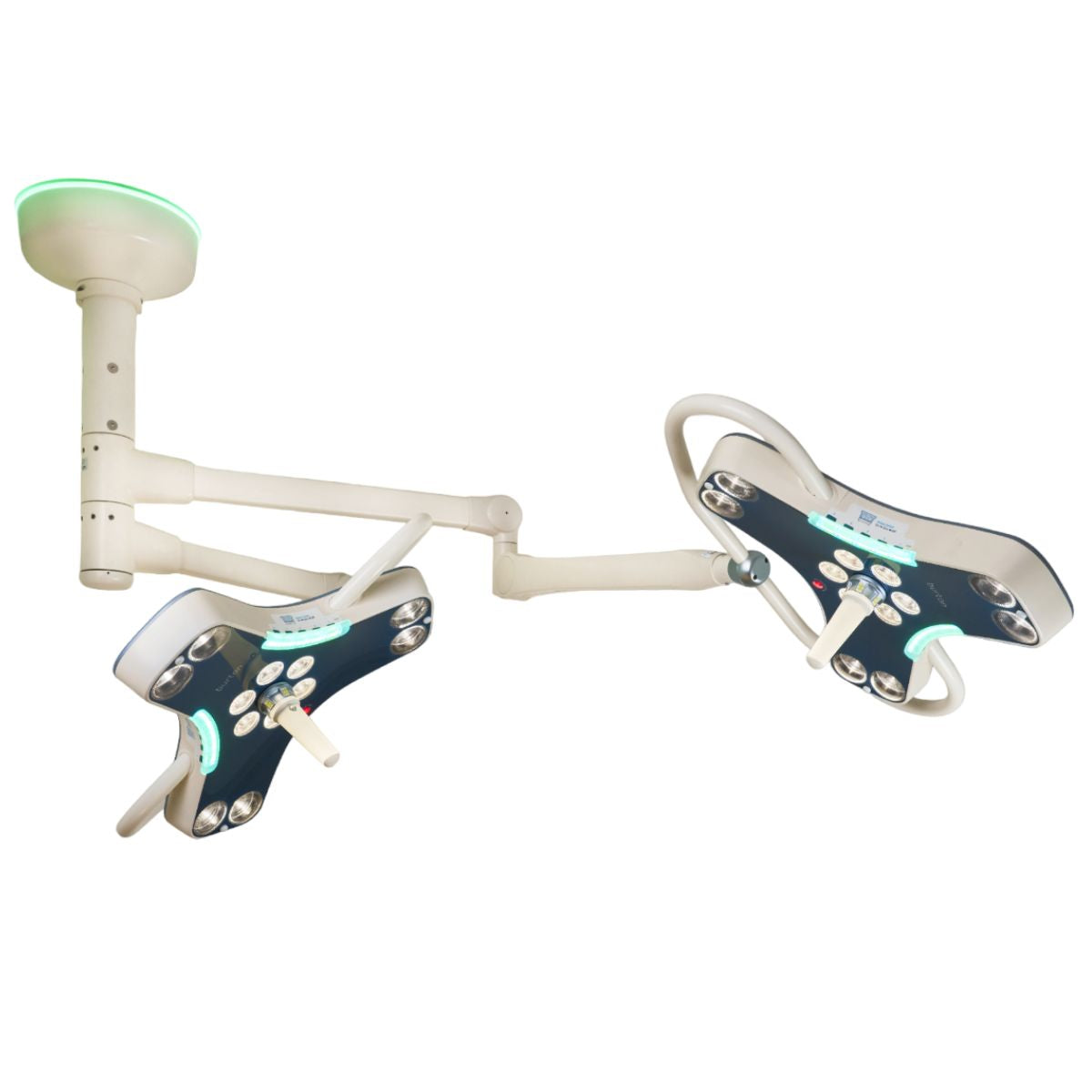

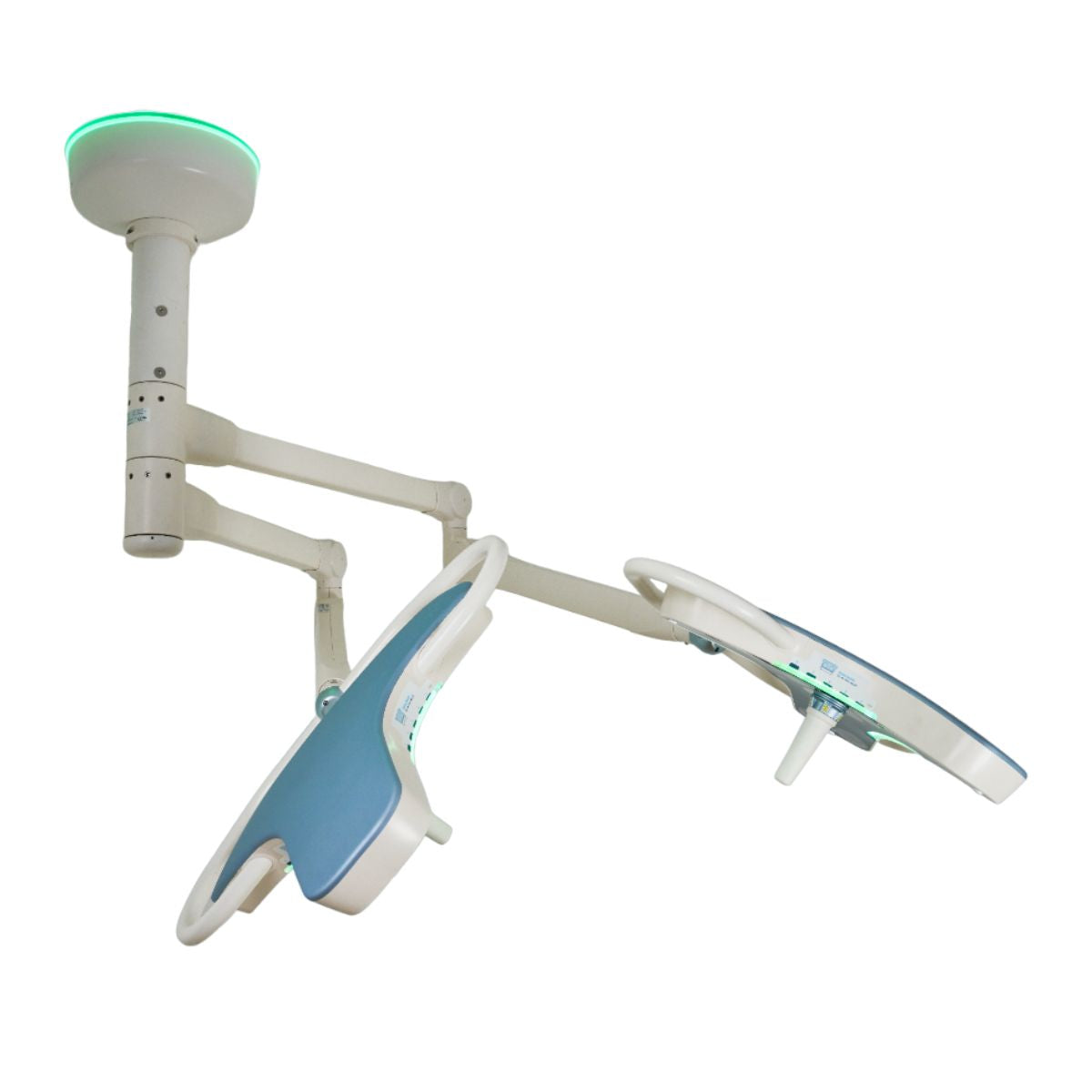

The Burton APEX LED Surgical Light – Dual Light, Long (Model AP160A22) is a double-ceiling-mounted surgical lighting system designed for ORs that need strong, even illumination with a slightly more compact reach than Burton's largest configuration. Two independent light heads on long 700 mm and 850 mm arms let surgical staff position bright, shadow-reduced light exactly where it's needed over the table.

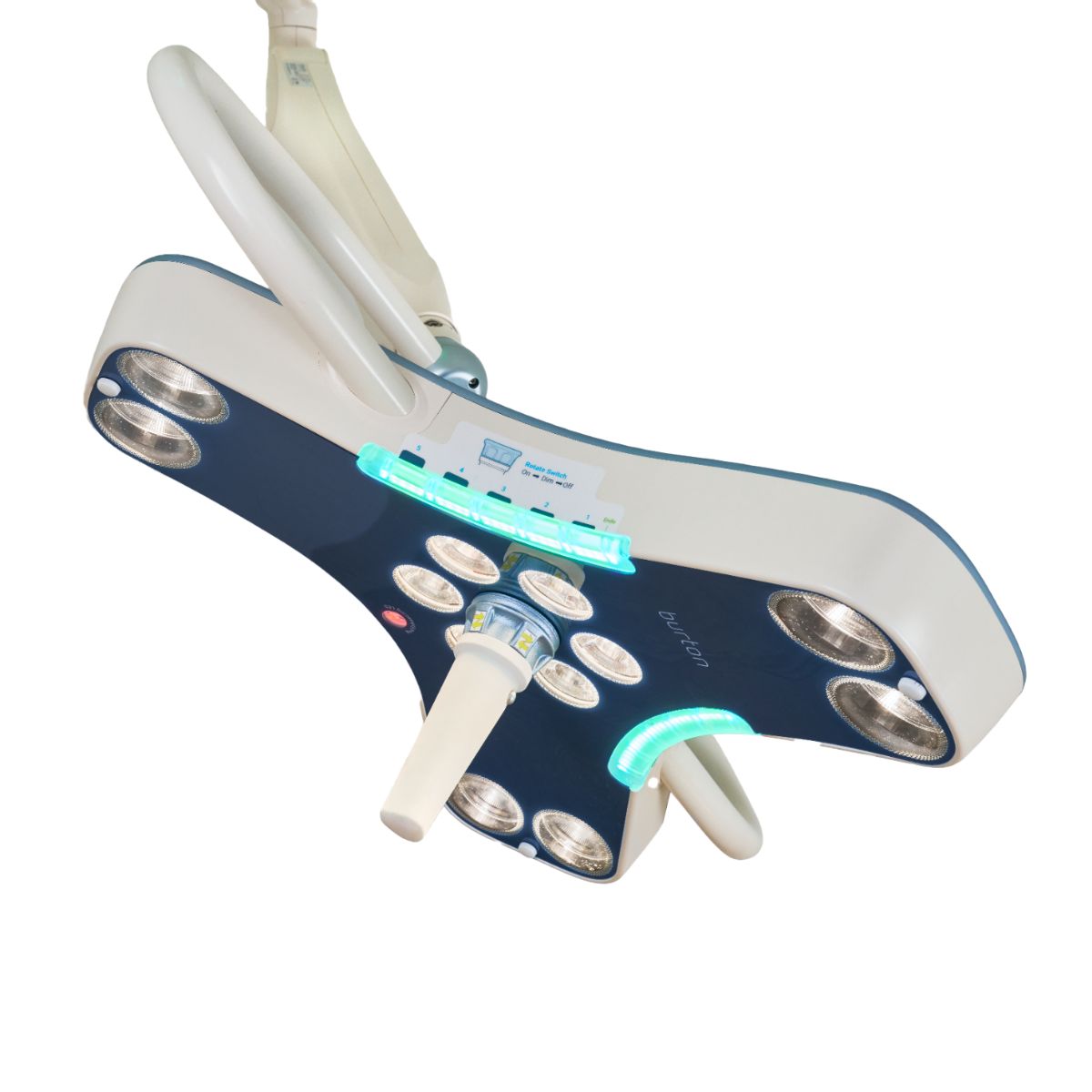

Each head uses Burton's tri-lobe LED optics — 12 modules of 6 LEDs each — to deliver up to 160,000 lux with a 4100K color temperature and a CRI greater than 97 for true-to-life tissue color. Five dimming levels (100,000 / 115,000 / 130,000 / 140,000 / 160,000 lux) and an Endo Mode setting support everything from general surgery to minimally invasive procedures, while unlimited arm rotation and a lightweight 22-inch head make repositioning quick and effortless.
Backed by a 50,000+ hour LED service life and assembled in the USA, the APEX LED Dual Light, Long gives hospitals and surgical centers dependable, low-maintenance lighting. It's FDA registered, manufactured under ISO 13485, and certified to UL/IEC 60601-1 medical electrical equipment standards.
| Model | AP160A22 |
|---|---|
| Brand | Burton Medical |
| Configuration | Dual light, double ceiling mount, long arms |
| Arm Lengths | 700 mm, 850 mm |
| Illuminance | 160,000 lux |
| Color Temperature | 4100K |
| CRI | Greater than 97 |
| Light Field Diameter (D10) | 9.5" (24 cm) |
| Depth of Illumination | 47" (119 cm) |
| Light Head | 22" diameter, 13 lbs per head |
| LED Life | 50,000+ hours |
| Certifications | FDA registered, ISO 13485, UL/IEC 60601-1 |
| Brand / Manufacturer | Burton |
| Category | Surgical Lights |
| Model / SKU | AP160A22 |
| Availability | In stock — ships from the USA |
| Warranty | Manufacturer warranty · Mediplies price-match |
| Shipping | Free shipping · freight or parcel by size |
Specifications sourced from the manufacturer. Need a detail that isn't listed? Ask our team →
