- Dual independent LED light heads on 850 mm and 1000 mm arms for flexible OR positioning
- Up to 130,000 lux per head with CRI greater than 97 for accurate tissue differentiation
- Tri-lobe LED optics with 12 LED modules to reduce hand and head shadowing
- 5-step dimming plus dedicated Endo mode for endoscopic procedures
- Unlimited head rotation with spring-balanced, non-drifting suspension arms
- 22" light head diameter at 13 lbs per head for a low-profile OR footprint
- 50,000+ hour rated LED service life
- Assembled in the USA; FDA registered, ISO 13485, UL/IEC 60601-1, EN/IEC 60601-2-41, CE certified
APEX LED Surgical Light- Dual Light, 850 mm, 1000 mm (Model AP130B03)

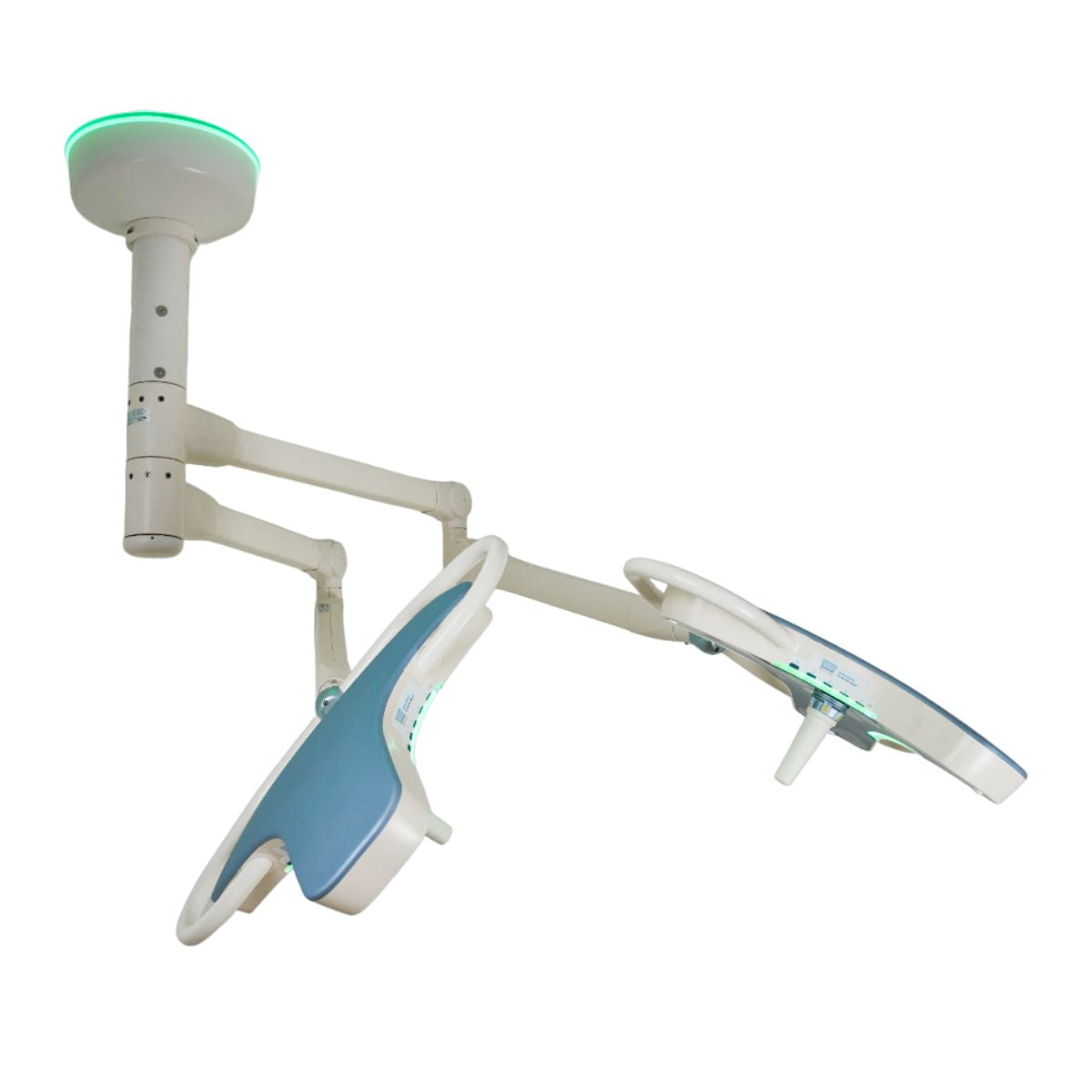

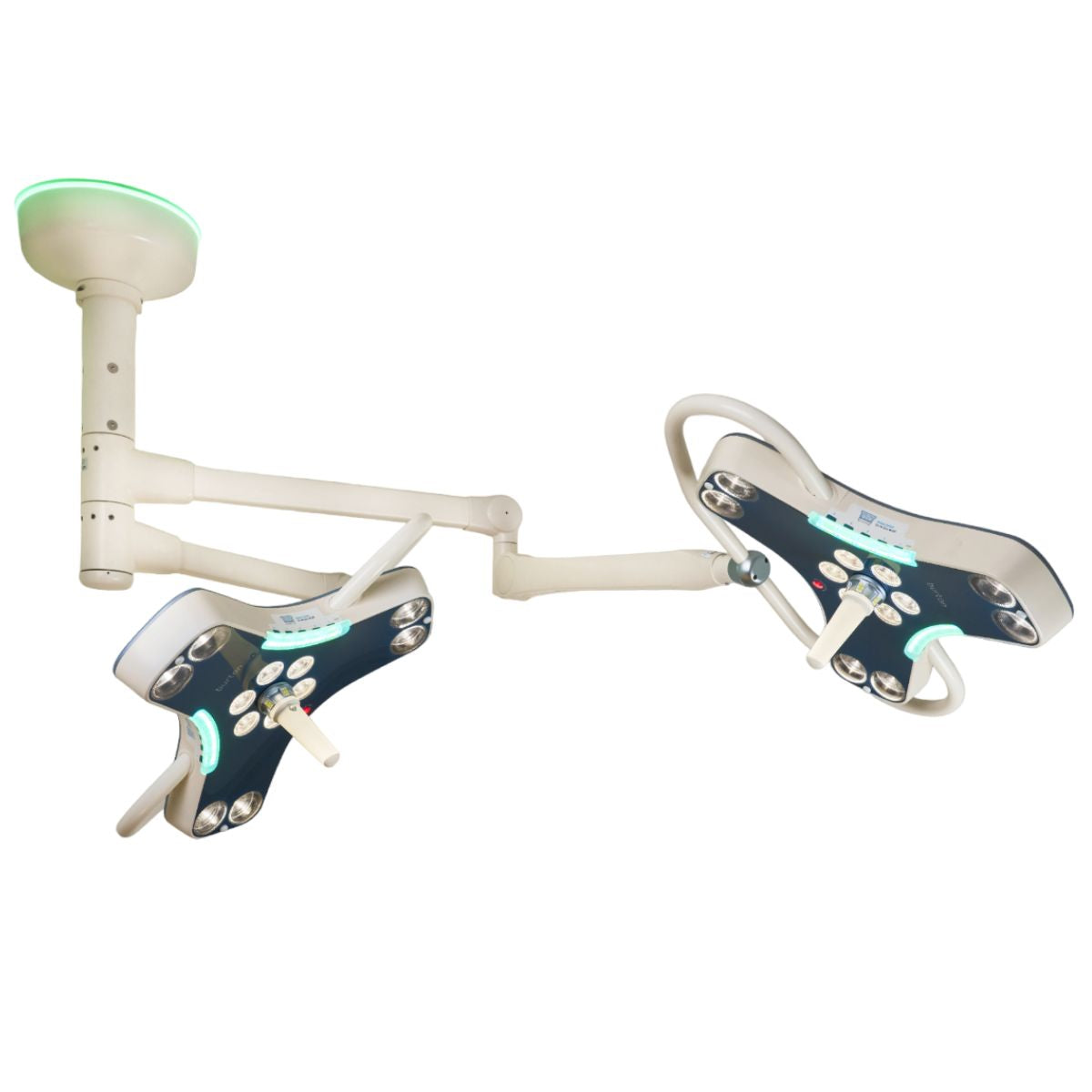

The Burton APEX LED Dual Light (Model AP130B03) is a ceiling-mounted, dual-head surgical light built for operating rooms that need consistent, shadow-free illumination across a wide range of procedures. Its two independent light heads run on 850 mm and 1000 mm arms with a short down tube, giving surgical teams broad reach and positioning flexibility around the sterile field.
Each 22", 13 lb head delivers up to 130,000 lux with a CRI greater than 97, using Burton's tri-lobe LED optics and 12-module LED array to minimize hand and head shadowing during deep-cavity and minimally invasive work. Five dimming levels, an Endo mode for scope-based procedures, unlimited head rotation, and a spring-balanced, non-drifting suspension let staff fine-tune light exactly where it's needed without constant readjustment.
Assembled in the USA and FDA registered, the APEX LED Dual Light is a fit for hospital ORs, ambulatory surgery centers, and specialty procedure rooms replacing legacy halogen or older LED systems. Mediplies stocks the AP130B03 configuration ready to ship for new installs and light replacements alike.
| Model | AP130B03 |
|---|---|
| Brand | Burton |
| Configuration | Dual Light, ceiling mount |
| Arm Lengths | 850 mm and 1000 mm |
| Down Tube | Short (approx. 12 in / 300 mm) |
| Max Illuminance | 130,000 lux at 1 meter, per head |
| Color Rendering Index (CRI) | Greater than 97 |
| Color Temperature | Approx. 4300K |
| Light Head | 22 in diameter, 13 lbs |
| Depth of Illumination | 47 in |
| LED Configuration | 12 modules, 50,000+ hour service life |
| Dimming | 5 intensity levels |
| Certifications | FDA Registered, ISO 13485, UL/IEC 60601-1, EN/IEC 60601-2-41, CE |
| Warranty | 5-year limited warranty on mechanical components |
| Brand / Manufacturer | Burton |
| Category | Surgical Lights |
| Model / SKU | AP130B03 |
| Availability | In stock — ships from the USA |
| Warranty | Manufacturer warranty · Mediplies price-match |
| Shipping | Free shipping · freight or parcel by size |
Specifications sourced from the manufacturer. Need a detail that isn't listed? Ask our team →
