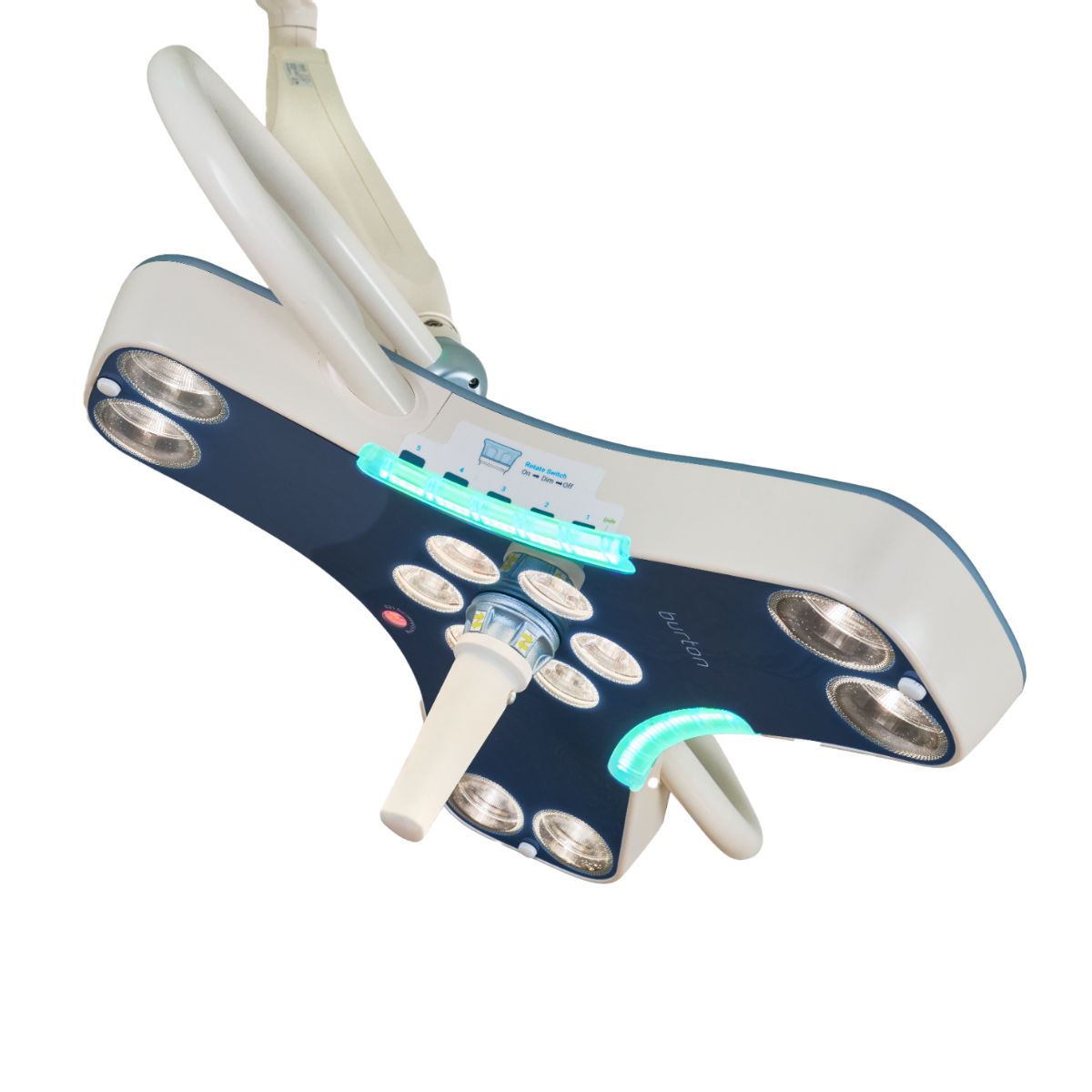

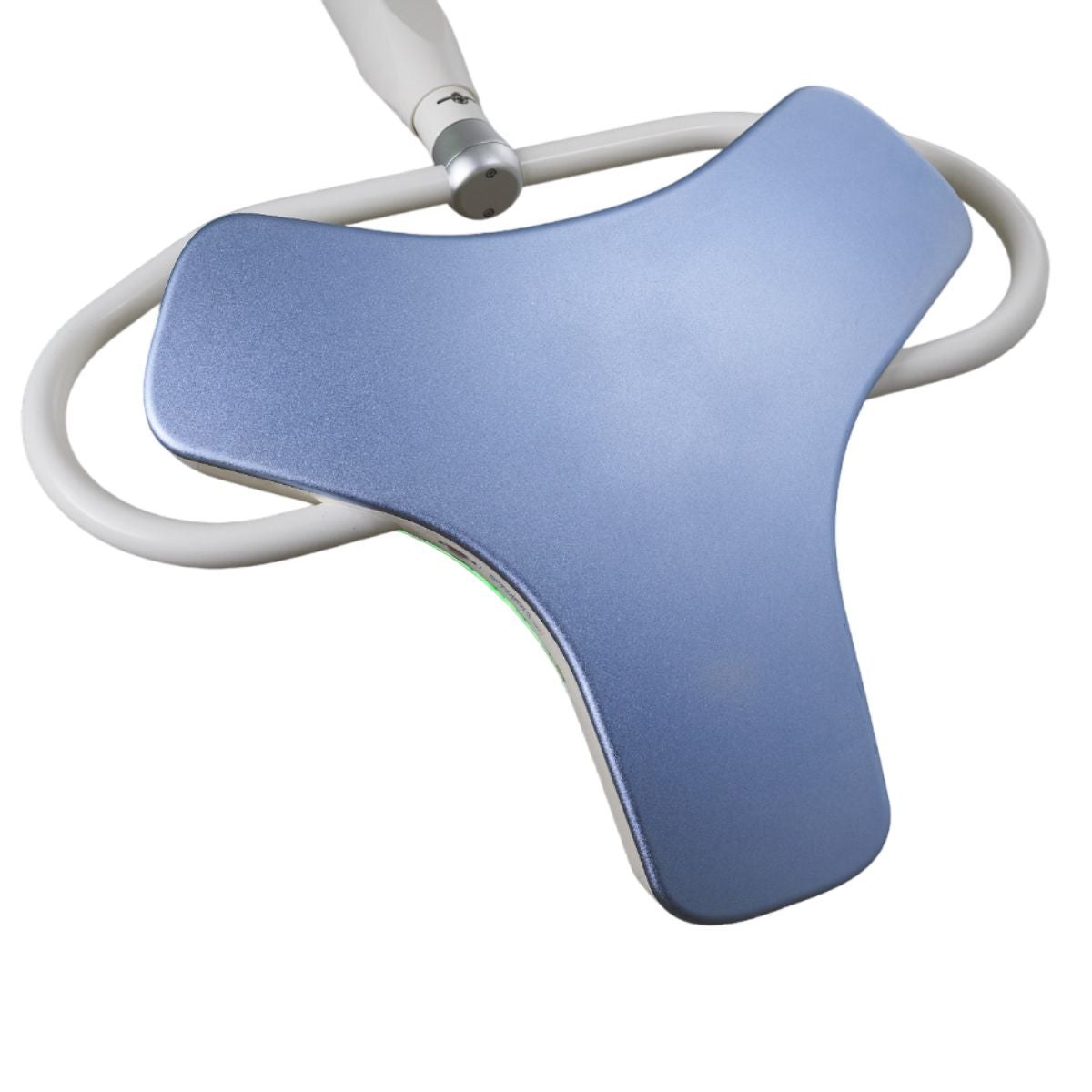

APEX LED Surgical Light- Single Light, Long, 700 mm (Model AP160A02)
SKU:
AP160A02
$14,417.00
In Stock — ready to ship. Most orders ship in 1-2 business days.
Guaranteed safe & secure checkout
Pay over time — Shop Pay installments available at checkout.
Authorized Dealer
Free Shipping
PO & Net Terms
Secure Checkout
Expert Support
- Tri-lobe LED optics deliver up to 160,000 lux at 1 meter with >97 CRI for accurate tissue color rendition
- Long drop tube (20"/500mm) with 700mm arm suits higher ceiling operating rooms (preferred ceiling 9-10 ft)
- 47" depth of illumination and 9.5" (D10) light field keep the surgical site evenly lit with minimal shadowing

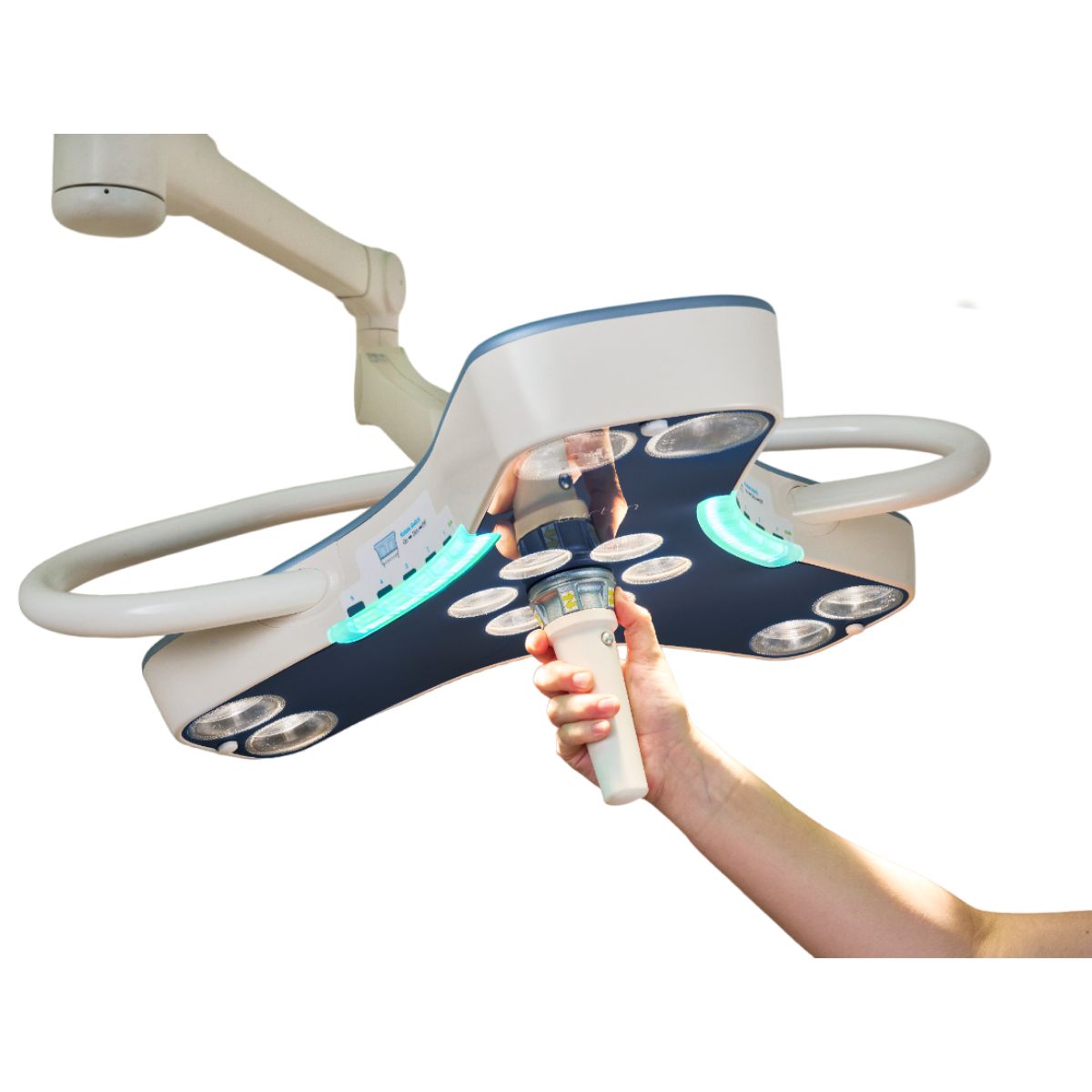

- Lightweight 22" light head (13 lbs) on a spring-balanced suspension arm for effortless one-hand positioning
- 5 dimming levels plus a dedicated Endo Mode for minimally invasive and endoscopic procedures
- Sealed, low-profile housing with reduced surface area for fast wipe-down disinfection between cases
- LED engine rated for 50,000+ hours of service life, minimizing replacement and downtime
- Backed by Burton's 5-year limited warranty; made in the USA
APEX LED Surgical Light- Single Light, Long, 700 mm (Model AP160A02)
The Burton APEX LED Surgical Light – Single Light, Long, 700 mm (Model AP160A02) is a ceiling-mounted single-head surgical light with a long drop tube designed for higher-ceiling operating rooms. Its tri-lobe LED light head delivers up to 160,000 lux at one meter with a CRI greater than 97, giving surgical teams accurate tissue color rendition throughout the case.
The long down tube (20"/500 mm) brings the light head down to a proper working height in rooms with 9 to 10 foot ceilings, while the 700 mm arm and spring-balanced suspension keep positioning smooth and precise. A lightweight 22-inch light head lets staff reposition the fixture with one hand, and five dimming levels plus a dedicated Endo Mode make it equally suited to open procedures and minimally invasive/endoscopic work.
Burton designed the APEX LED with a sealed, low-profile housing and reduced surface area for fast, thorough wipe-down disinfection between cases. Backed by a 5-year limited warranty and proudly made in the USA, the APEX LED Single Light Long 700 mm is a dependable choice for hospitals and surgery centers with taller ceiling operating rooms.
Buying for a facility? Contact us for volume & case pricing — we support purchase orders and net terms for qualified institutions. Talk to our team →
| Model | AP160A02 |
|---|---|
| Brand | Burton Medical |
| Configuration | Single light, long drop tube |
| Arm Length | 700 mm |
| Drop Tube | Long, 20" / 500 mm |
| Illuminance | 160,000 lux at 1 meter |
| CRI | >97 |
| Light Field Diameter (D10) | 9.5" (24 cm) |
| Depth of Illumination | 47" (119 cm) |
| Light Head | 22" diameter (56 cm), 13 lbs (5.9 kg) |
| LED Life | 50,000+ hours |
| Country of Origin | USA |
| Warranty | 5-year limited warranty |
| Brand / Manufacturer | Burton |
| Category | Surgical Lights |
| Model / SKU | AP160A02 |
| Availability | In stock — ships from the USA |
| Warranty | Manufacturer warranty · Mediplies price-match |
| Shipping | Free shipping · freight or parcel by size |
Specifications sourced from the manufacturer. Need a detail that isn't listed? Ask our team →
