- Tri-lobe LED optics deliver up to 160,000 lux at 1 meter with >97 CRI for accurate tissue color rendition
- Short drop tube (12"/300mm) with 850mm arm gives extra reach while suiting lower ceiling heights
- 47" depth of illumination and 9.5" (D10) light field keep the surgical site evenly lit with minimal shadowing

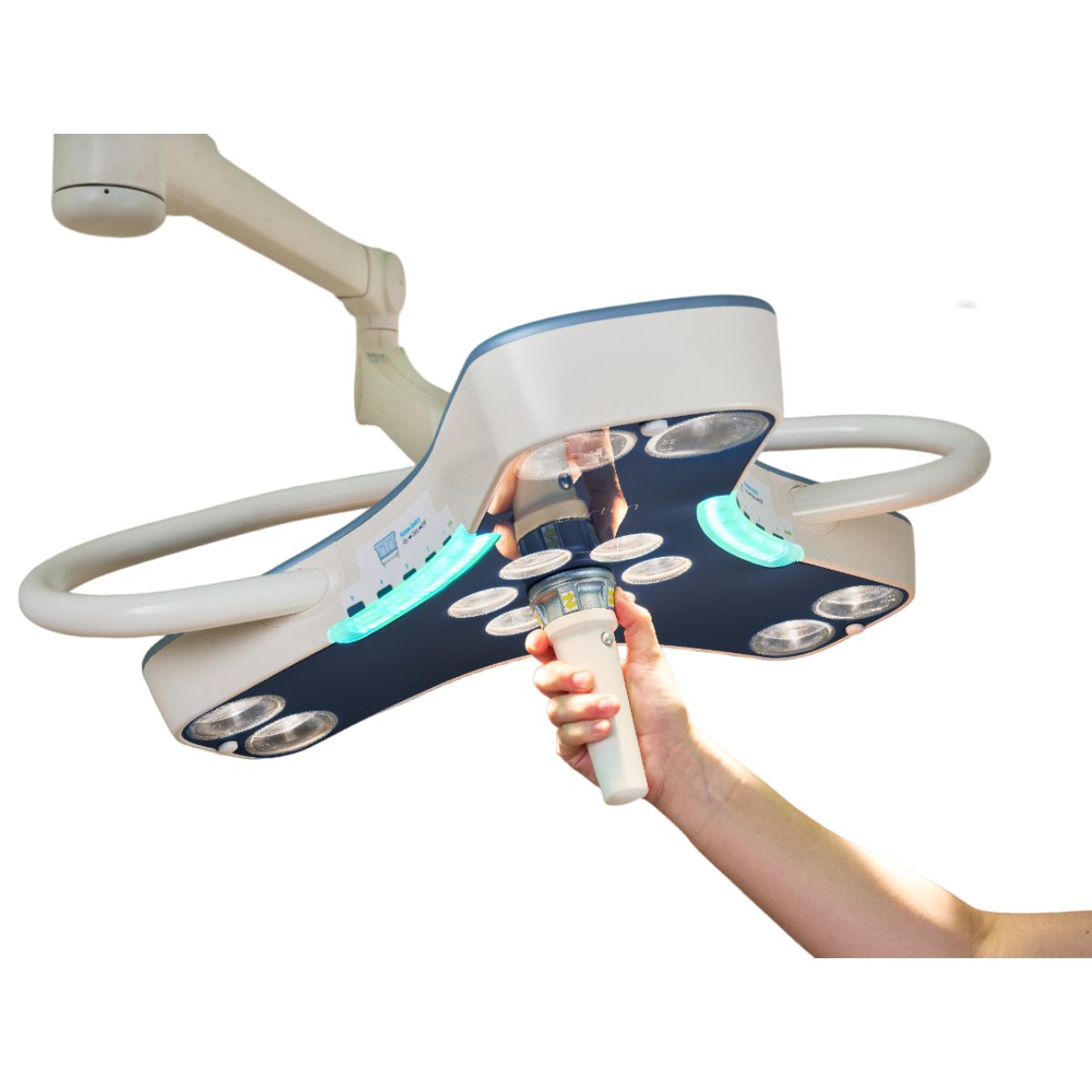

- Lightweight 22" light head (13 lbs) on a spring-balanced suspension arm for effortless one-hand positioning
- 5 dimming levels plus a dedicated Endo Mode for minimally invasive and endoscopic procedures

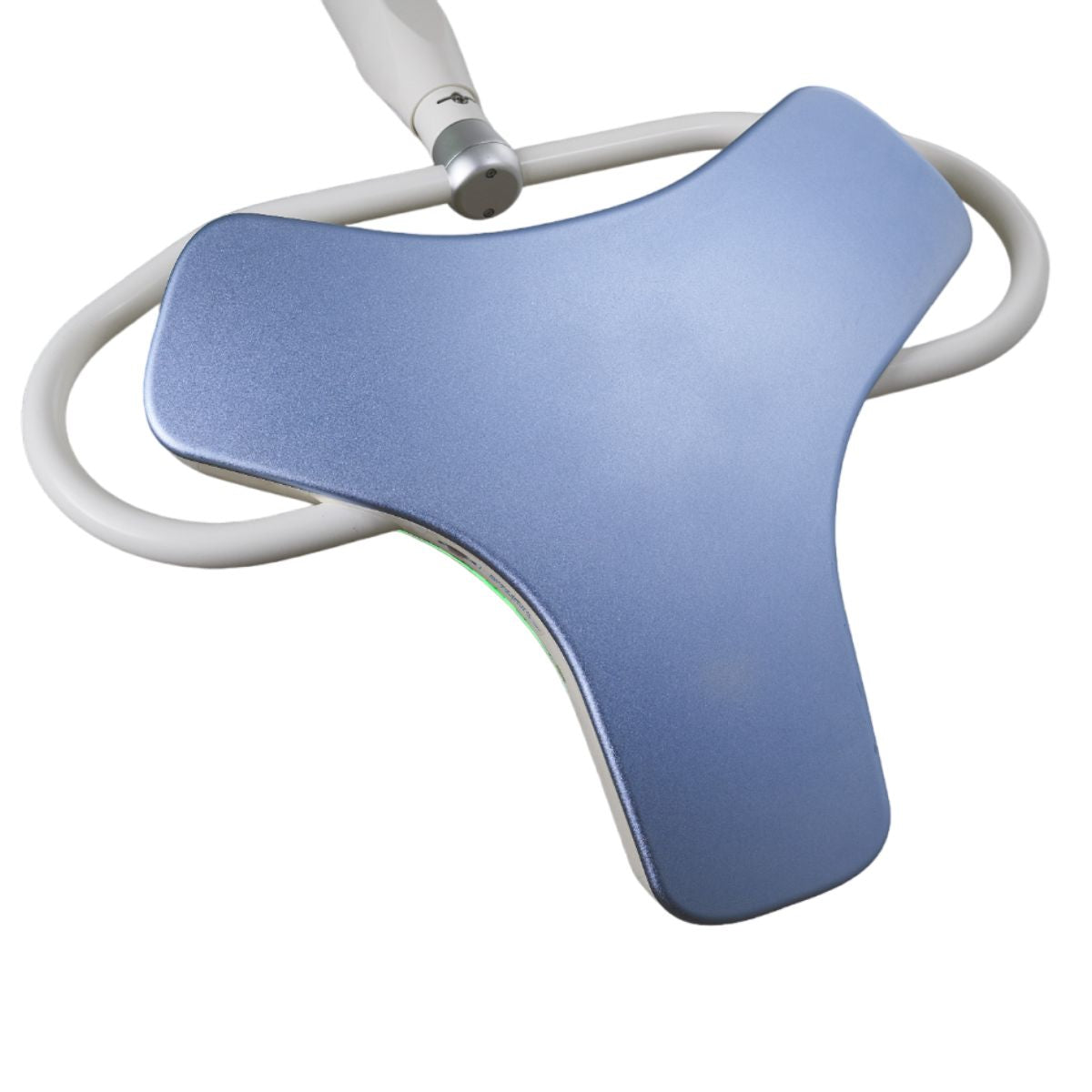

- Sealed, low-profile housing with reduced surface area for fast wipe-down disinfection between cases
- LED engine rated for 50,000+ hours of service life, minimizing replacement and downtime
- Backed by Burton's 5-year limited warranty; made in the USA

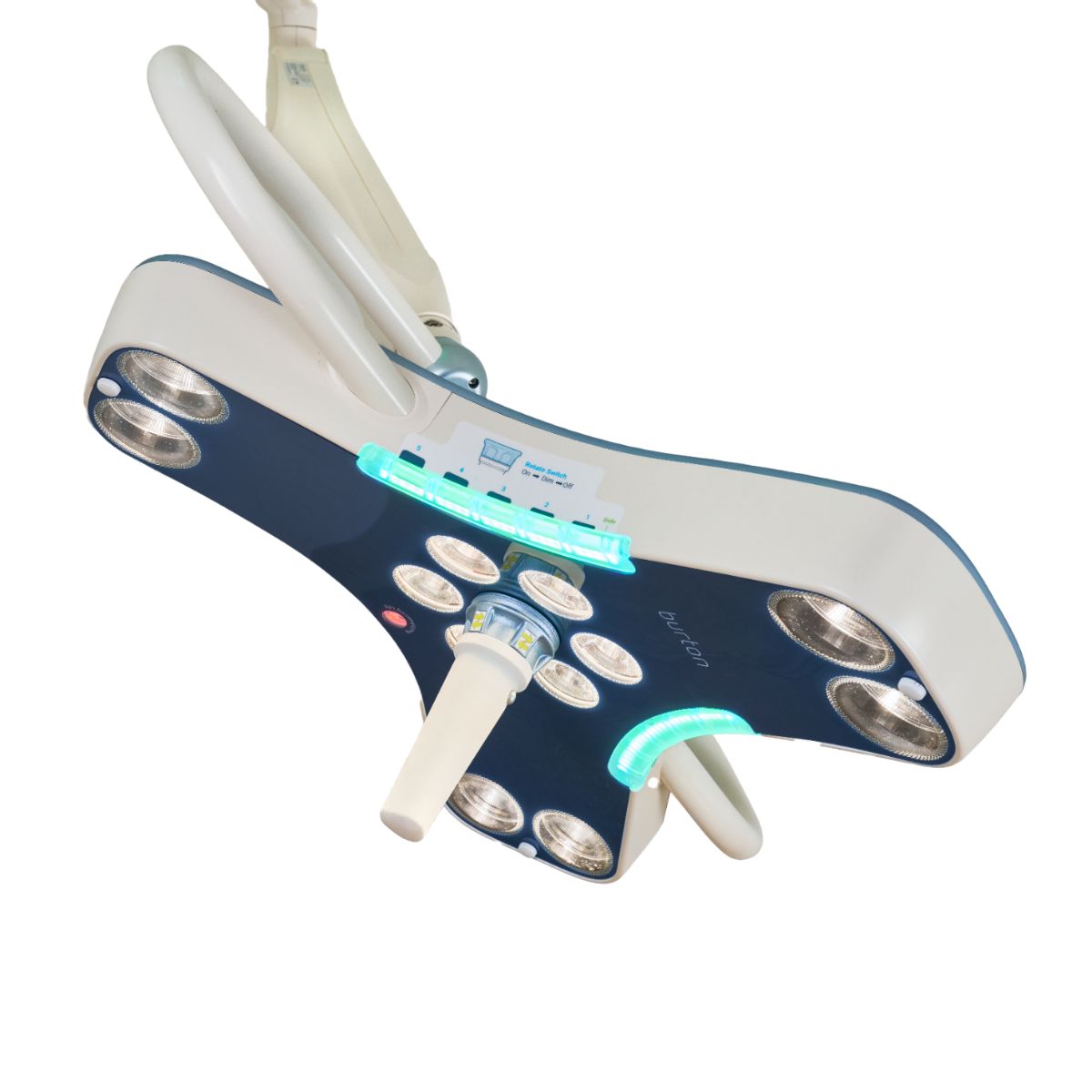

APEX LED Surgical Light- Single Light, Short, 850 mm (Model AP160B01)
The Burton APEX LED Surgical Light – Single Light, Short, 850 mm (Model AP160B01) is a ceiling-mounted single-head surgical light built for operating rooms and procedure suites that need bright, true-color illumination with extended arm reach. Its tri-lobe LED light head delivers up to 160,000 lux at one meter with a CRI greater than 97, giving surgical teams accurate tissue color rendition throughout the case.
The short down tube pairs with an 850 mm arm to give staff extra reach over larger tables and equipment while still suiting lower ceiling heights. A spring-balanced suspension arm and lightweight 22-inch light head let staff reposition the fixture with one hand, and five dimming levels plus a dedicated Endo Mode make it equally suited to open procedures and minimally invasive/endoscopic work.
Burton designed the APEX LED with a sealed, low-profile housing and reduced surface area for fast, thorough wipe-down disinfection between cases. Backed by a 5-year limited warranty and proudly made in the USA, the APEX LED Single Light 850 mm is a dependable surgical lighting solution for hospitals, ambulatory surgery centers, and specialty clinics that need extra arm reach.
| Model | AP160B01 |
|---|---|
| Brand | Burton Medical |
| Configuration | Single light, short drop tube |
| Arm Length | 850 mm |
| Drop Tube | Short, 12" / 300 mm |
| Illuminance | 160,000 lux at 1 meter |
| CRI | >97 |
| Light Field Diameter (D10) | 9.5" (24 cm) |
| Depth of Illumination | 47" (119 cm) |
| Light Head | 22" diameter (56 cm), 13 lbs (5.9 kg) |
| LED Life | 50,000+ hours |
| Country of Origin | USA |
| Warranty | 5-year limited warranty |
| Brand / Manufacturer | Burton |
| Category | Surgical Lights |
| Model / SKU | AP160B01 |
| Availability | In stock — ships from the USA |
| Warranty | Manufacturer warranty · Mediplies price-match |
| Shipping | Free shipping · freight or parcel by size |
Specifications sourced from the manufacturer. Need a detail that isn't listed? Ask our team →
