APEX LED Surgical Light- Dual Light, 850 mm, 1000 mm, Long (Model AP160B22)
- Authorized Distributor
- Direct manufacturer partnership
- Secure B2B Checkout
- Encrypted facility purchasing
- Fast Shipping
- Ships in 2-4 business days
- Warranty
- Manufacturer-backed warranty

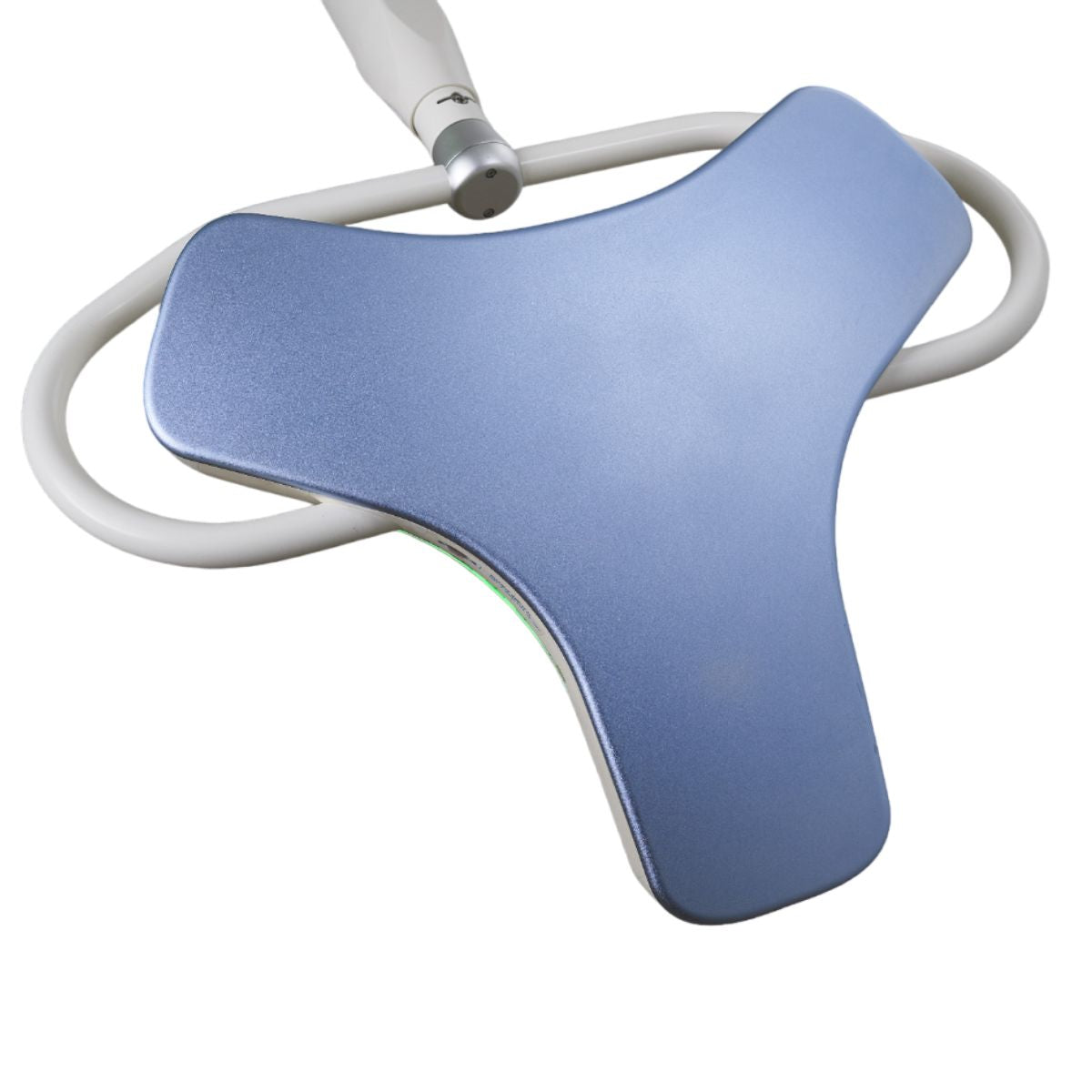

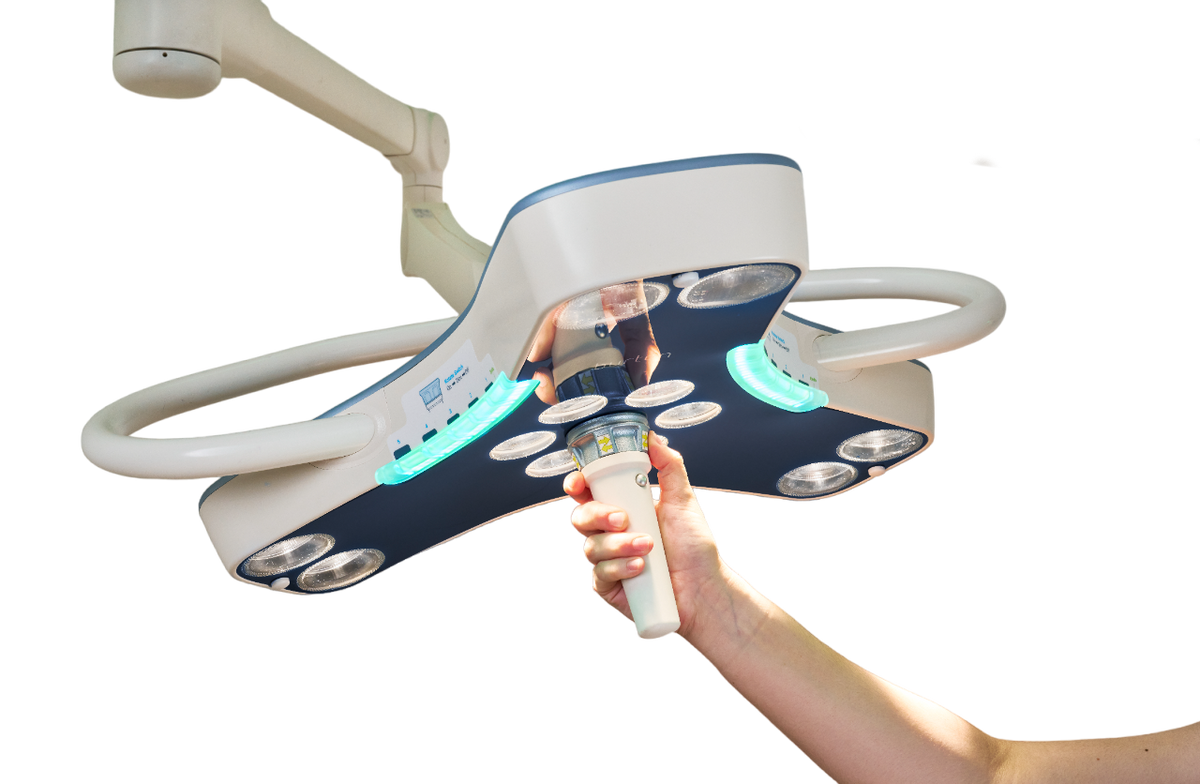

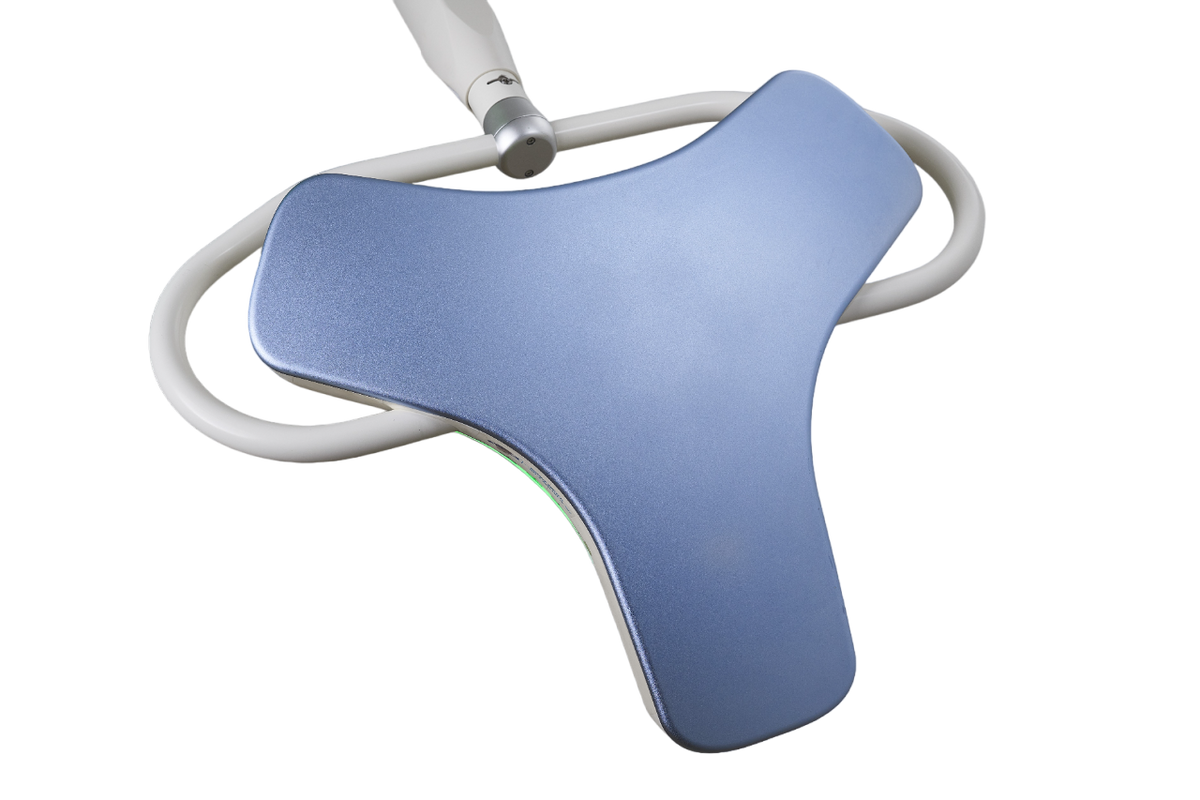

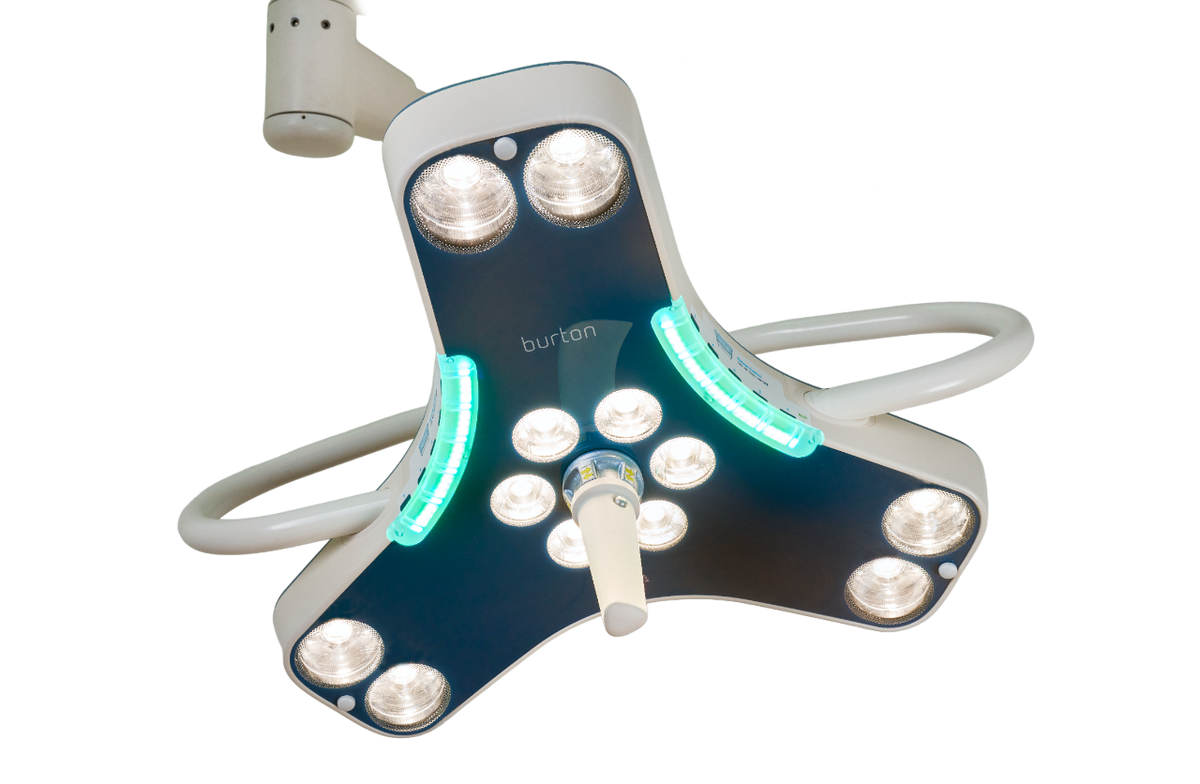

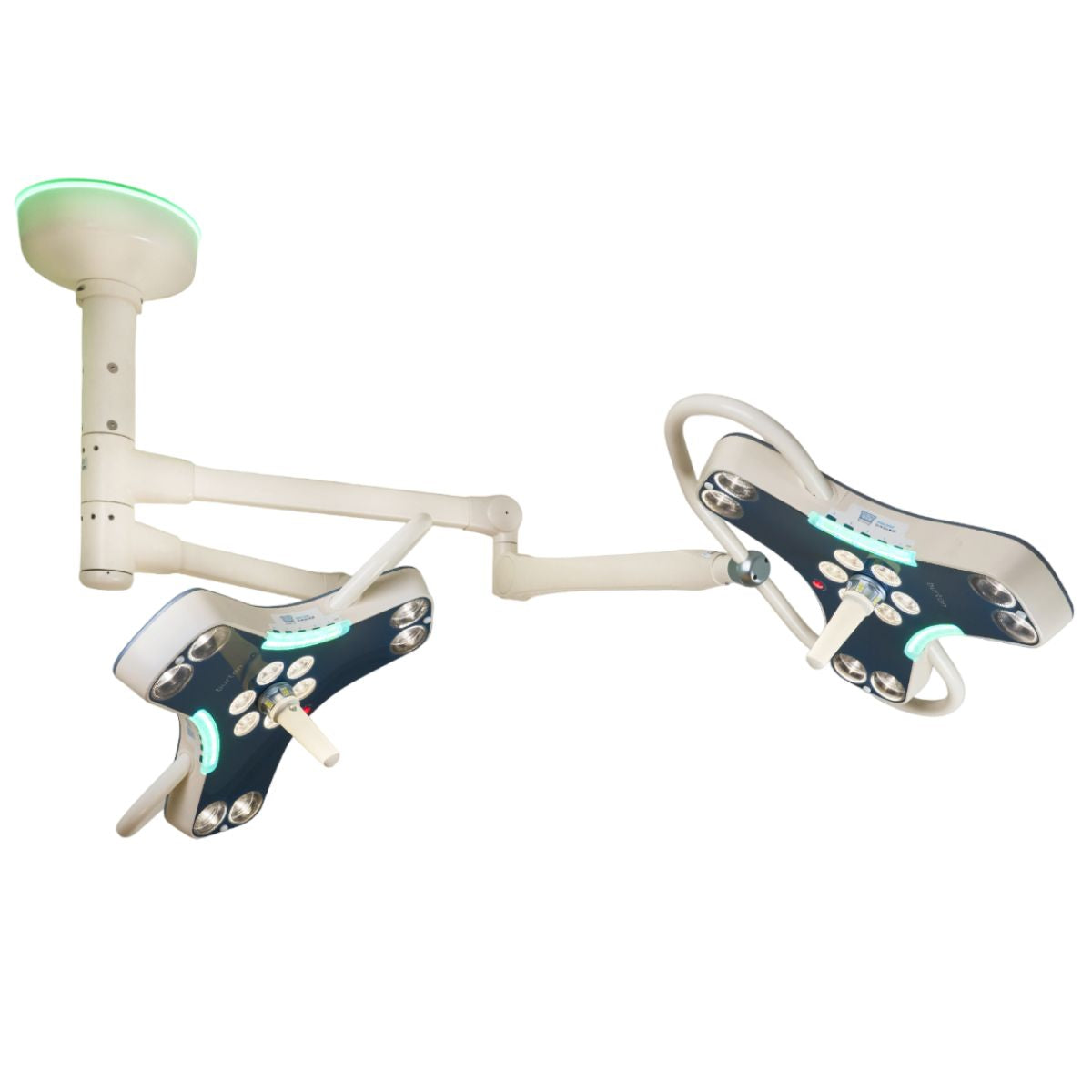

The Burton APEX LED Surgical Light AP160B22 is a dual ceiling-mounted LED surgical light built for operating rooms that need two independently positionable light heads over a single field. Each 22" diameter head delivers up to 160,000 lux at 1 meter with a color temperature in the 4100-4300K range and a CRI greater than 97, giving surgical teams bright, true-color illumination of tissue with minimal shadowing.

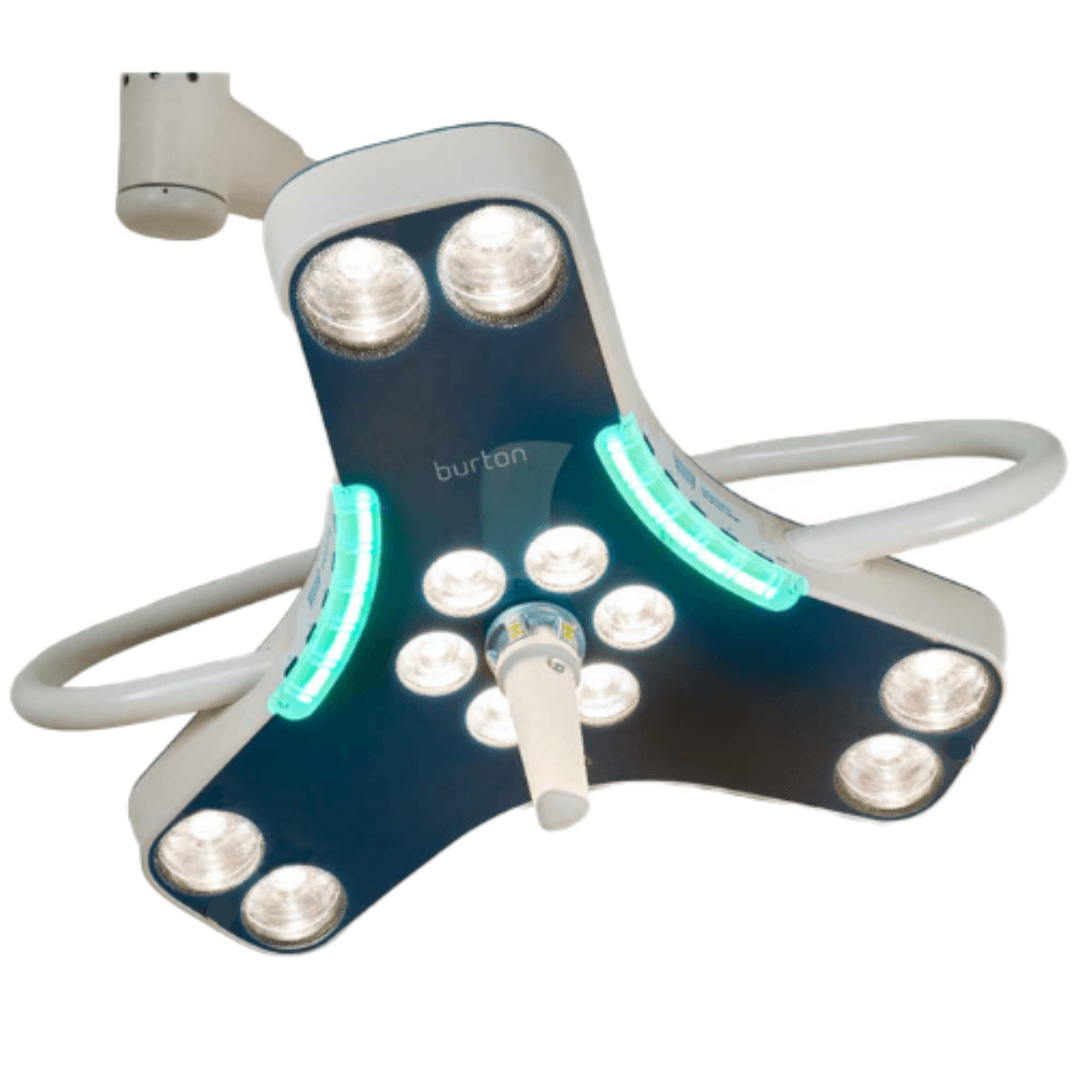

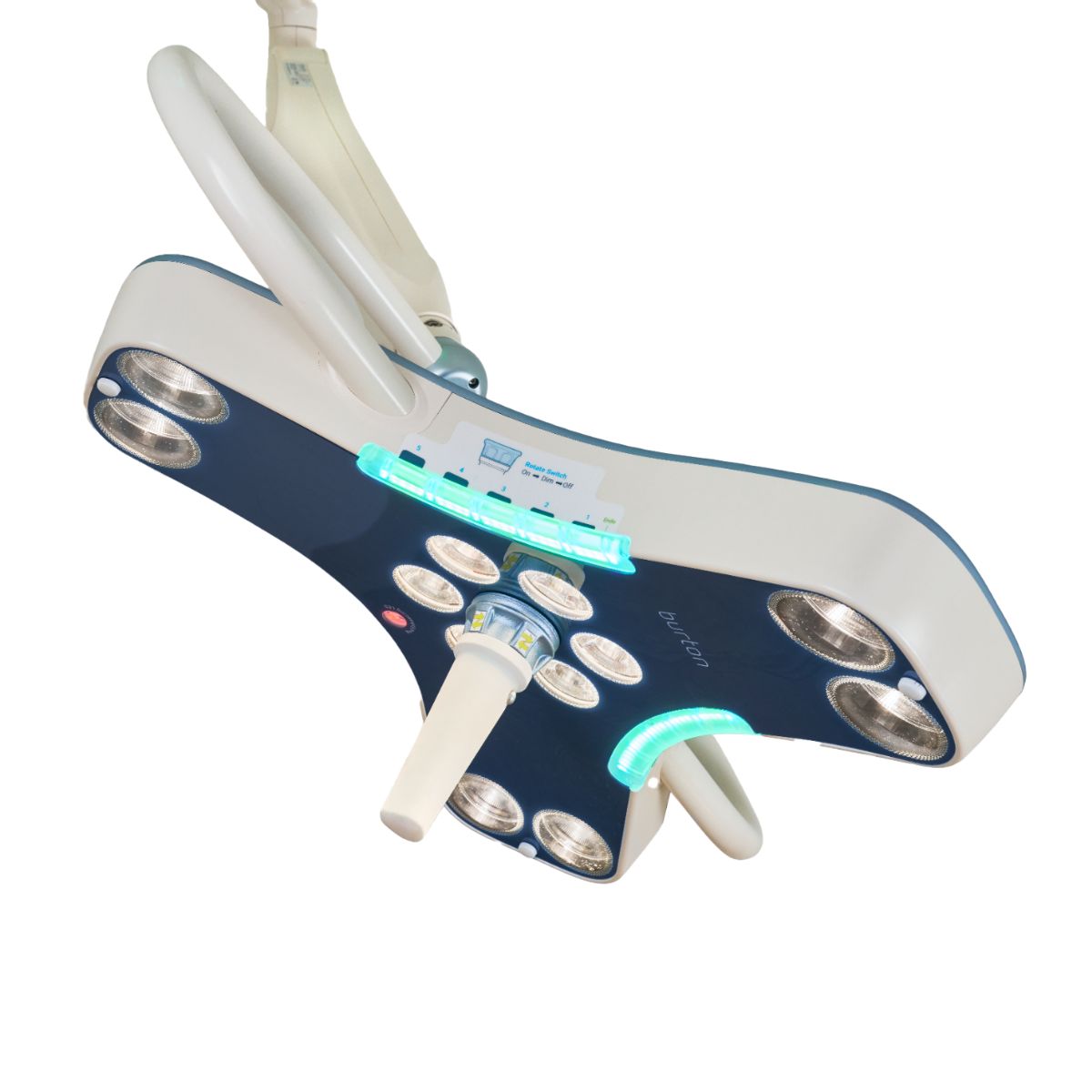

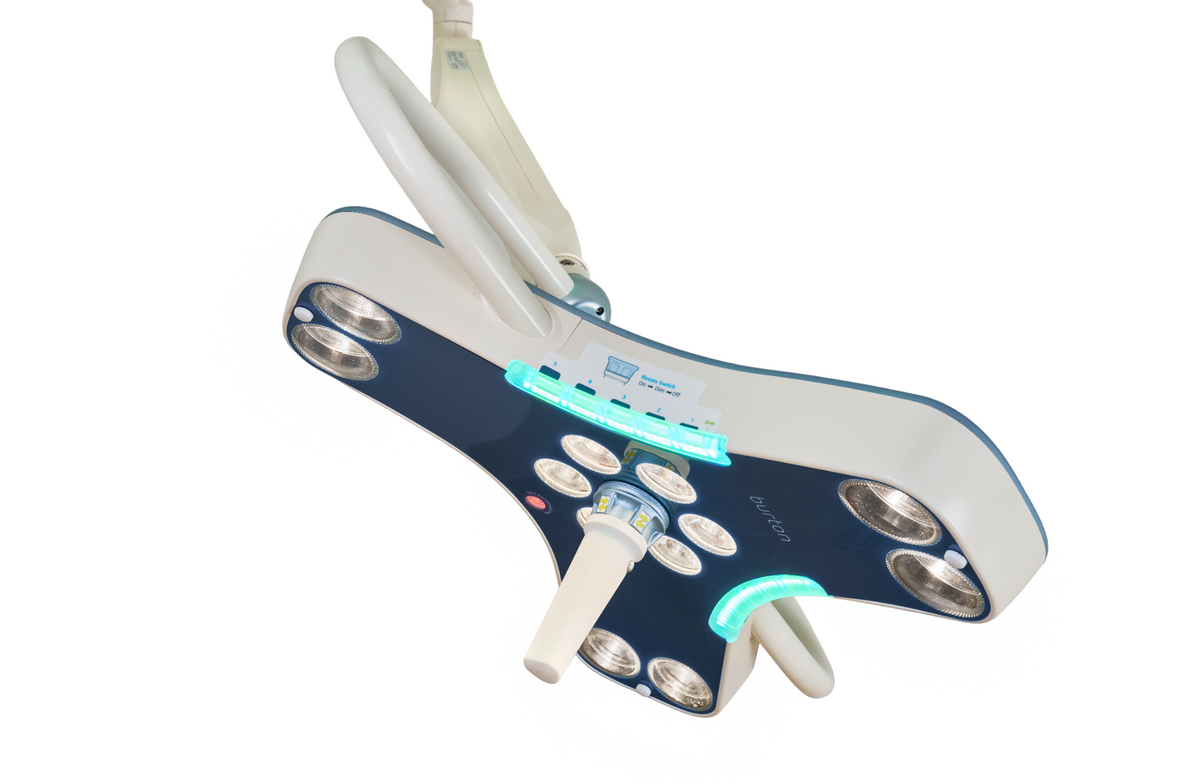

Burton's tri-lobe LED optic design, arranged in 12 modules of 6 LEDs each, is engineered specifically to reduce shadowing from surgeons' hands and instruments. This AP160B22 configuration ships with 850 mm and 1000 mm arm lengths and a long down tube, suited for rooms with higher ceilings or larger equipment booms. Each light head weighs just 13 lbs, mounts on a spring-balanced suspension arm with unlimited rotation and up to 75° of vertical tilt, and offers 5 dimming levels plus a dedicated Endo Mode for endoscopic and minimally invasive procedures.
With a rated LED service life of 50,000+ hours, the APEX LED is designed to run essentially maintenance-free for the life of the fixture. It's FDA registered, ISO 13485 compliant, and UL/IEC and CE certified, and is assembled in the USA. For surgical suites replacing aging halogen or older LED lights, the Burton APEX LED Dual Light offers a lightweight, high-output upgrade backed by Burton's manufacturer warranty.
160,000 lux maximum illuminance at 1 meter, per light head
Color temperature ~4100–4300K with CRI greater than 97 for accurate tissue color rendition
Tri-lobe LED design (12 modules, 6 LEDs each) for superior shadow reduction

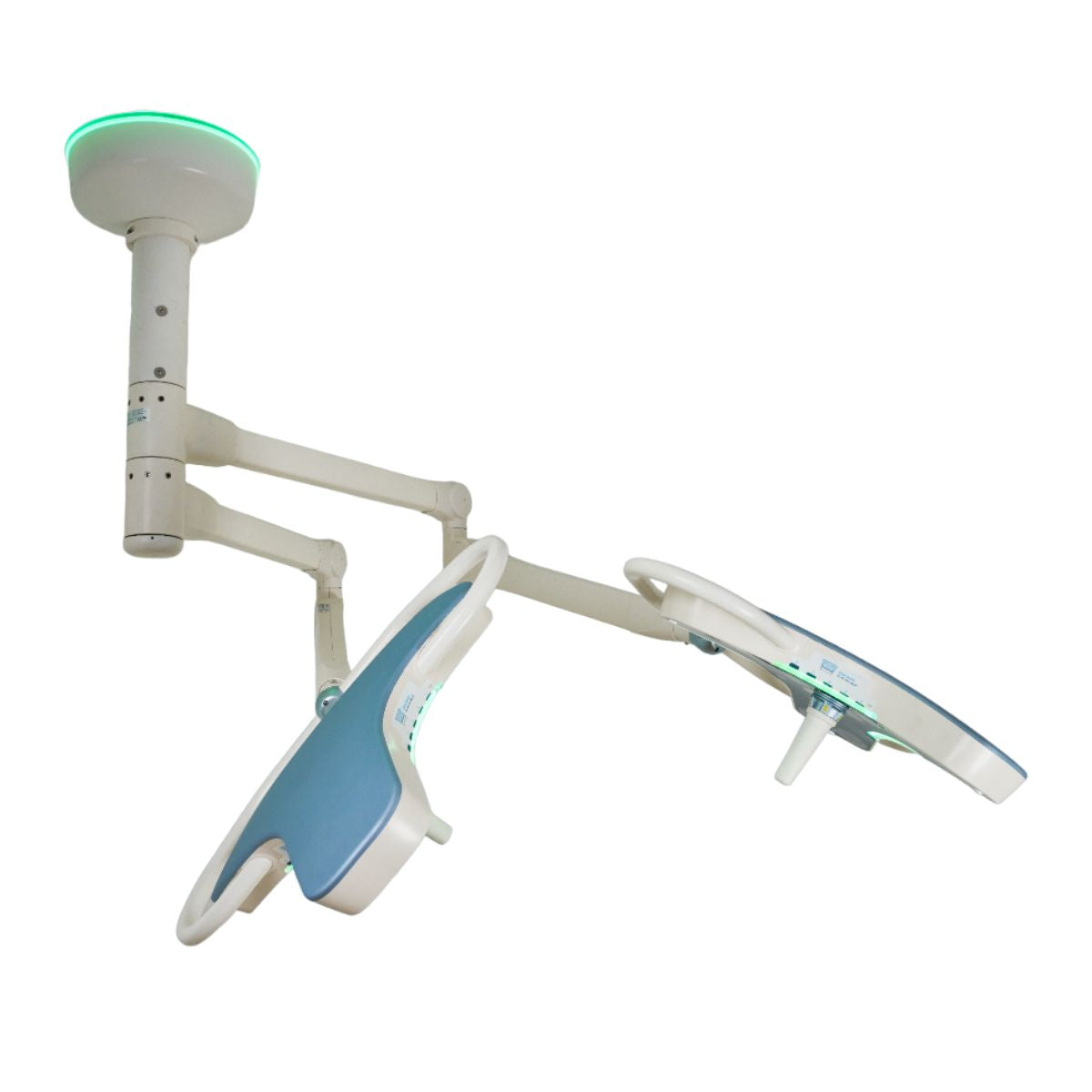

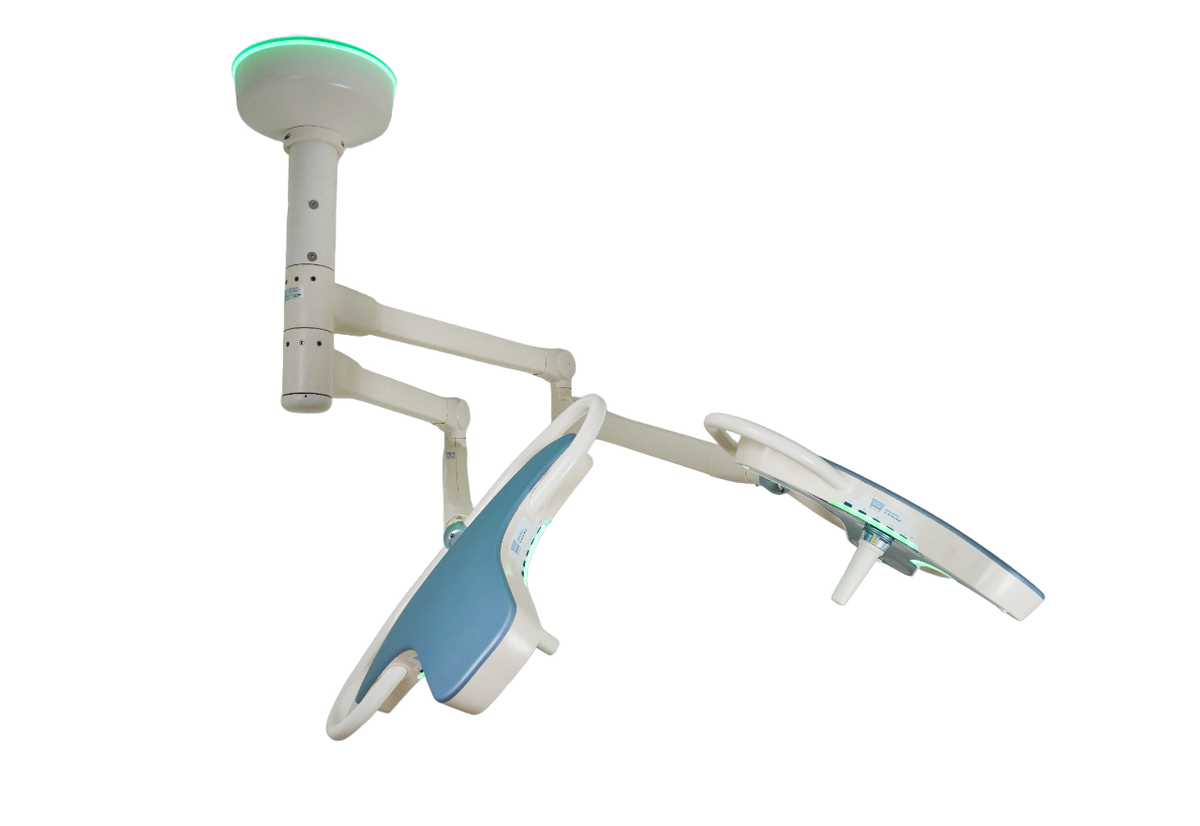

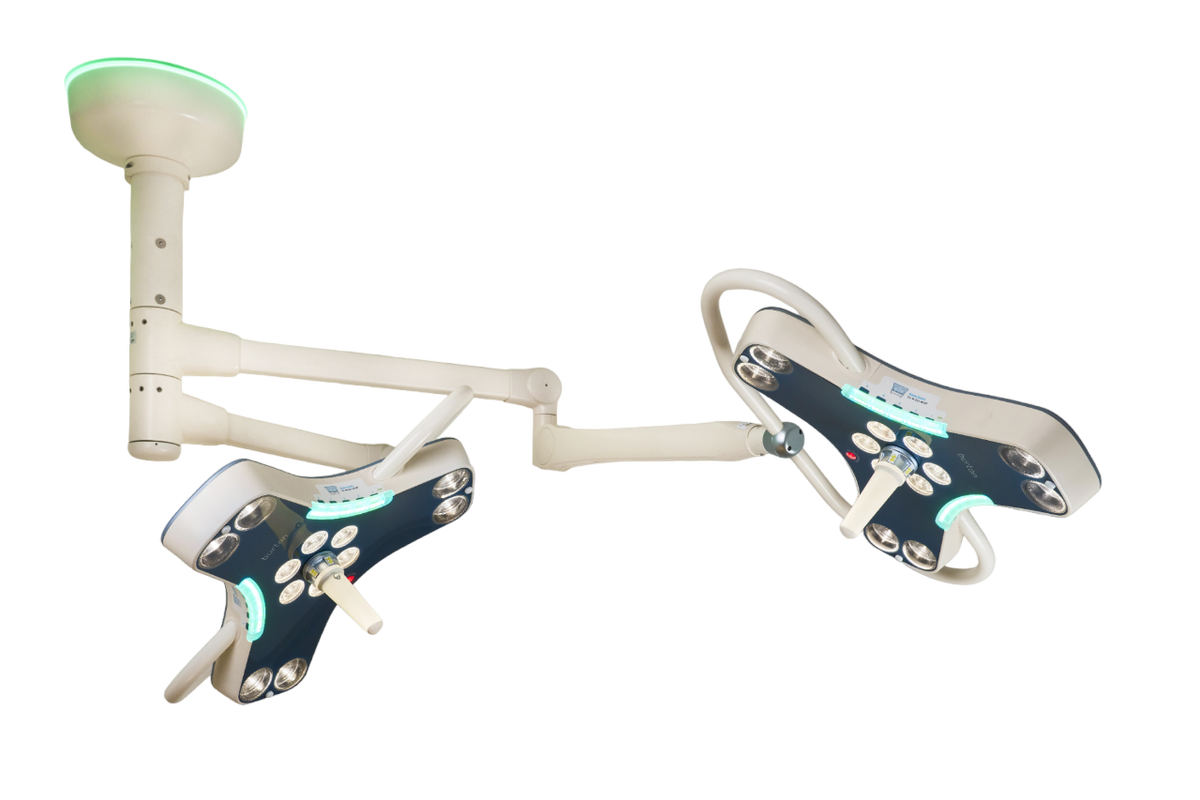

Dual ceiling-mounted 22" light heads, 13 lbs each, with 850 mm / 1000 mm arm lengths and long down tube
Unlimited arm rotation, spring-balanced suspension, up to 75° vertical tilt
5 dimming levels plus dedicated Endo Mode for minimally invasive procedures
50,000+ hour rated LED service life
FDA registered, ISO 13485 compliant, UL/IEC and CE certified; assembled in the USA
| Brand / Manufacturer | Burton |
|---|---|
| SKU | AP160B22 |
| Category | Medical Equipment |
| Availability | In stock — ships from the USA |
Specifications sourced from the manufacturer. Need a detail that isn't listed? Ask our team →
