APEX LED Surgical Light- Single Light, Long 850 mm

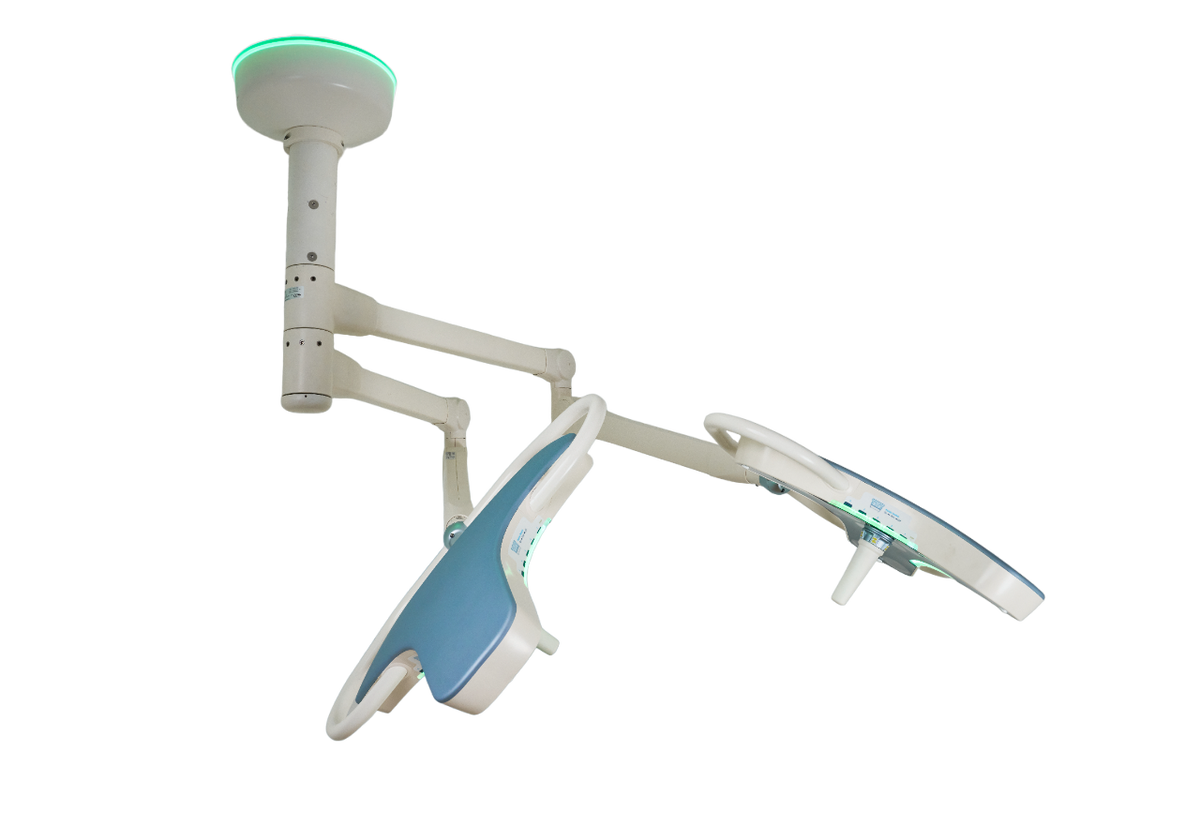

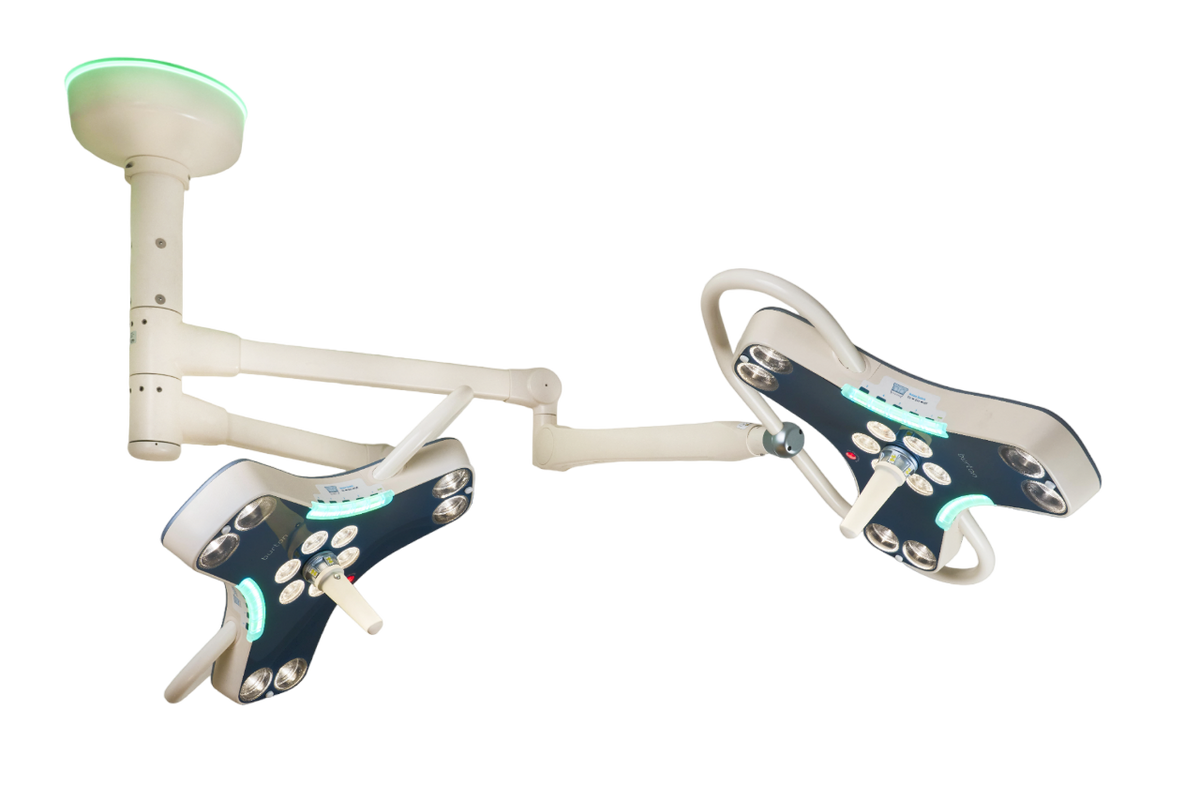

The APEX LED Surgical Light, Single Light, Long, 850 mm (Model AP130B02) is a single-head, ceiling-mounted operating light from Burton Medicalbuilt around Burton's patent-pending tri-lobe LED light head and engineered for operating rooms, procedure rooms, and outpatient surgical suites that need bright, shadow-free illumination without the bulk of a traditional OR light. This configuration pairs the long down tube (20 in / 500 mm, sized for ceilings roughly 9-10 ft high) with a 890 mm reach arm, making it a practical single-light solution for minor-surgery suites, dermatology and plastic surgery centers, veterinary operating rooms, oral surgery suites, podiatry surgical suites, and ambulatory surgical centers where one well-placed light head covers the field.

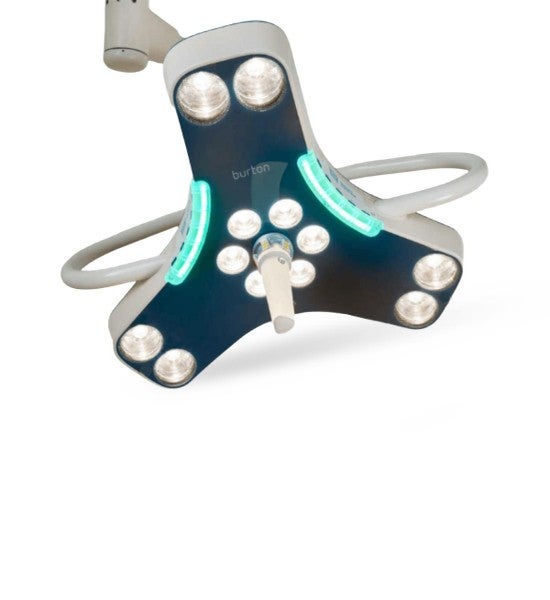

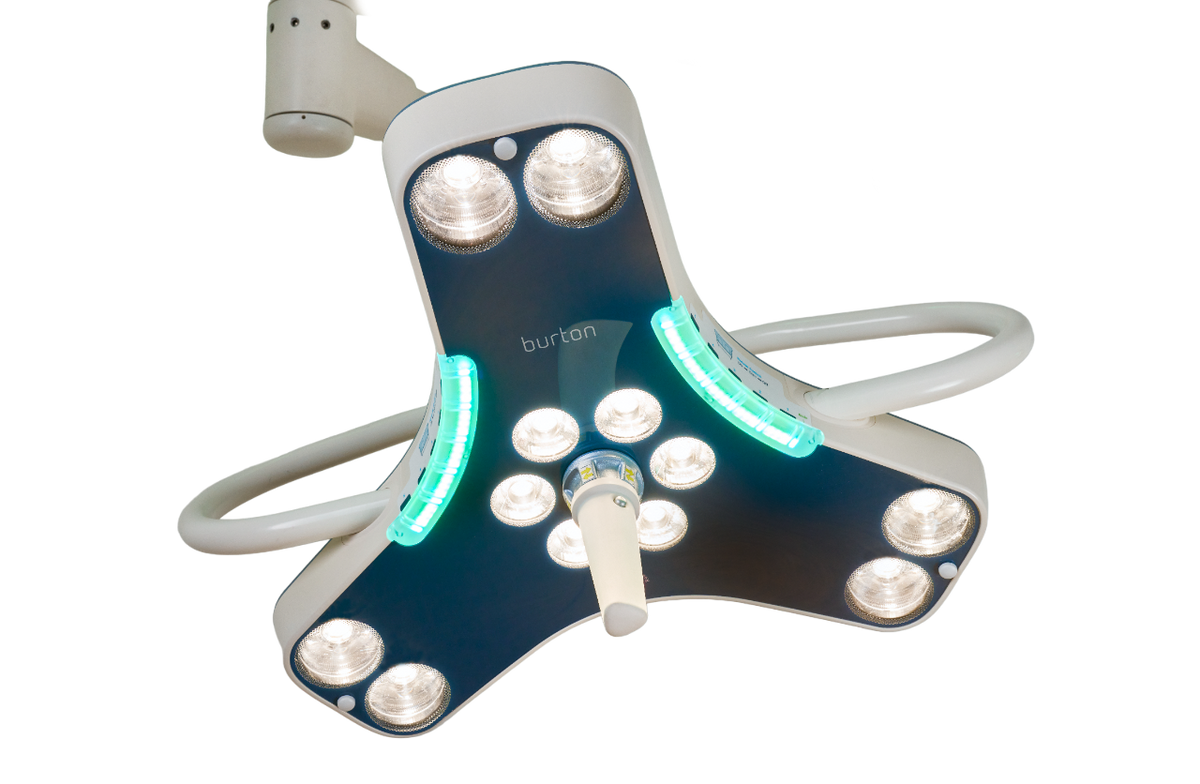

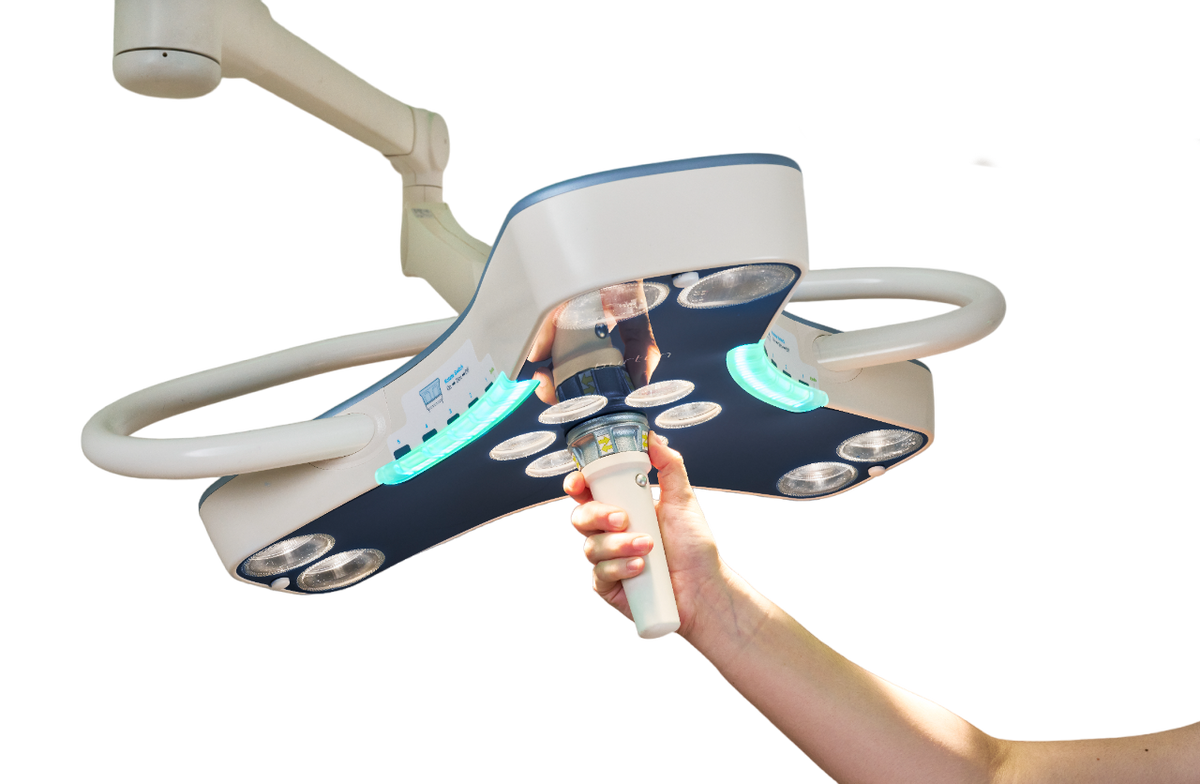

At the core of the AP130B02 is Burton's 12-module LED light head (6 LEDs per module) delivering up to 130,000 lux of maximum illuminance across five selectable dimming levels (90,000 / 100,000 / 110,000 / 120,000 / 130,000 lux), a 4300 Kelvin color temperature, and a color rendering index greater than 97 (R9 > 97) for accurate, true-to-life tissue visualization. The light field measures 9.5 in (24 cm) in diameter at D10 with a depth of illumination of 47 in (119 cm) and a D50/D10 ratio greater than .53, giving surgeons a well-controlled, evenly graduated beam that resists shadowing from the surgical team's hands and instruments. A dedicated Endo Mode adjusts output for endoscopic and minimally invasive procedures, and a standby power indicator keeps staff informed of light-head status at a glance.

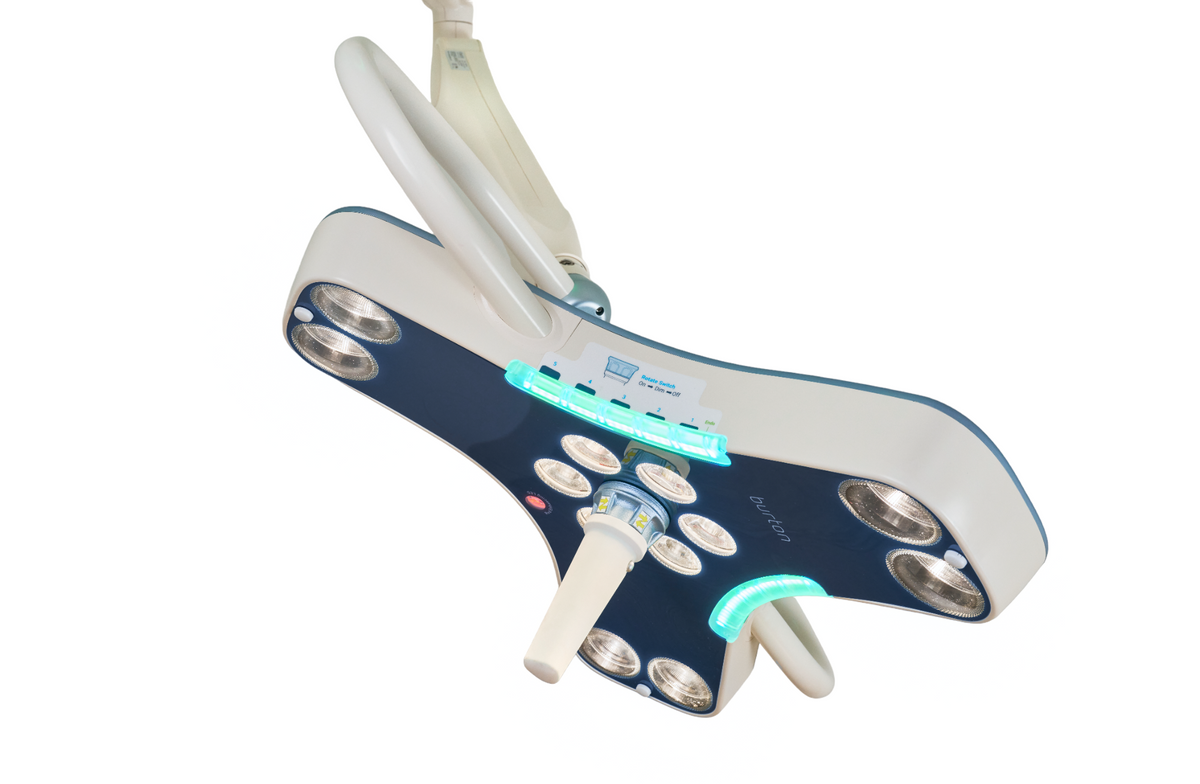

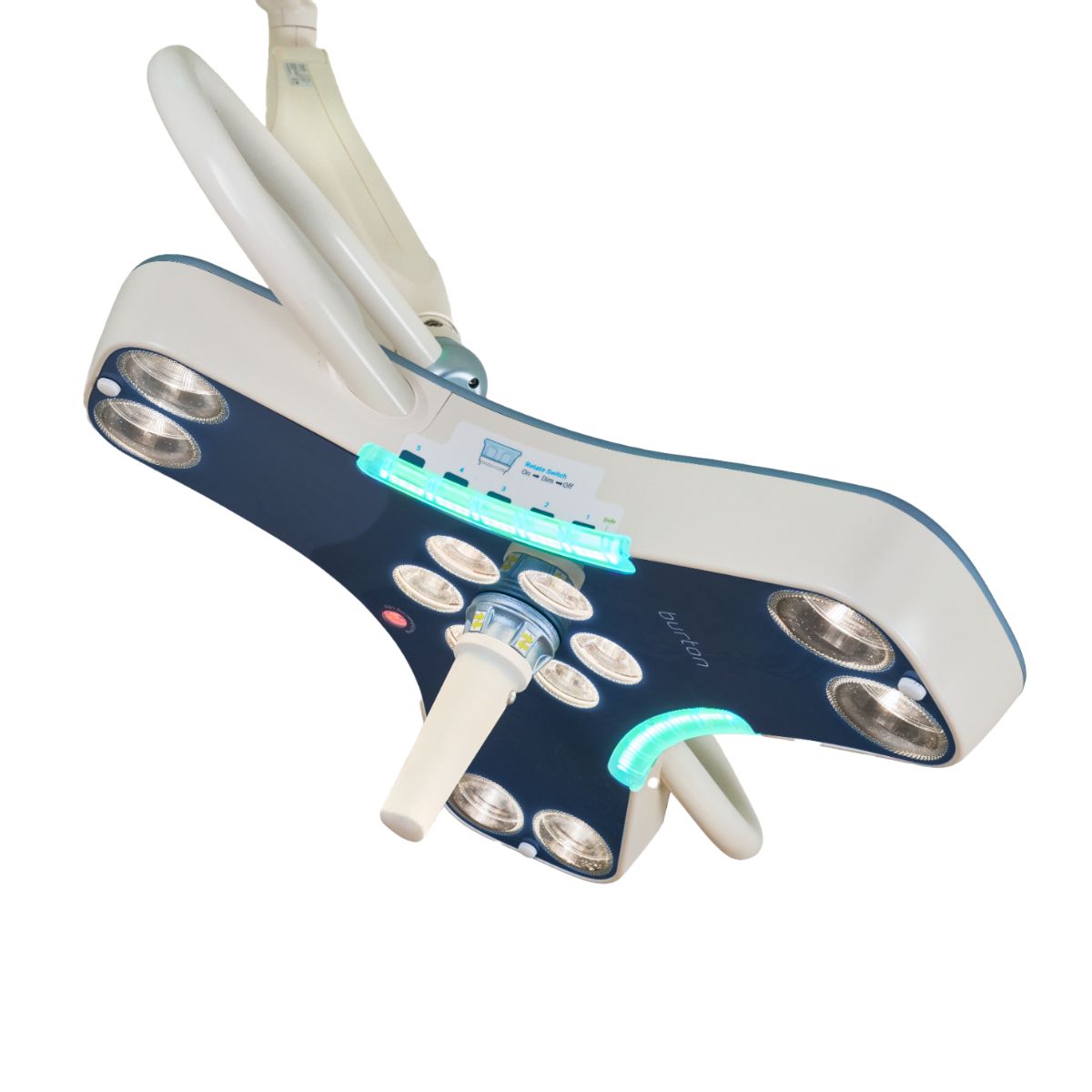

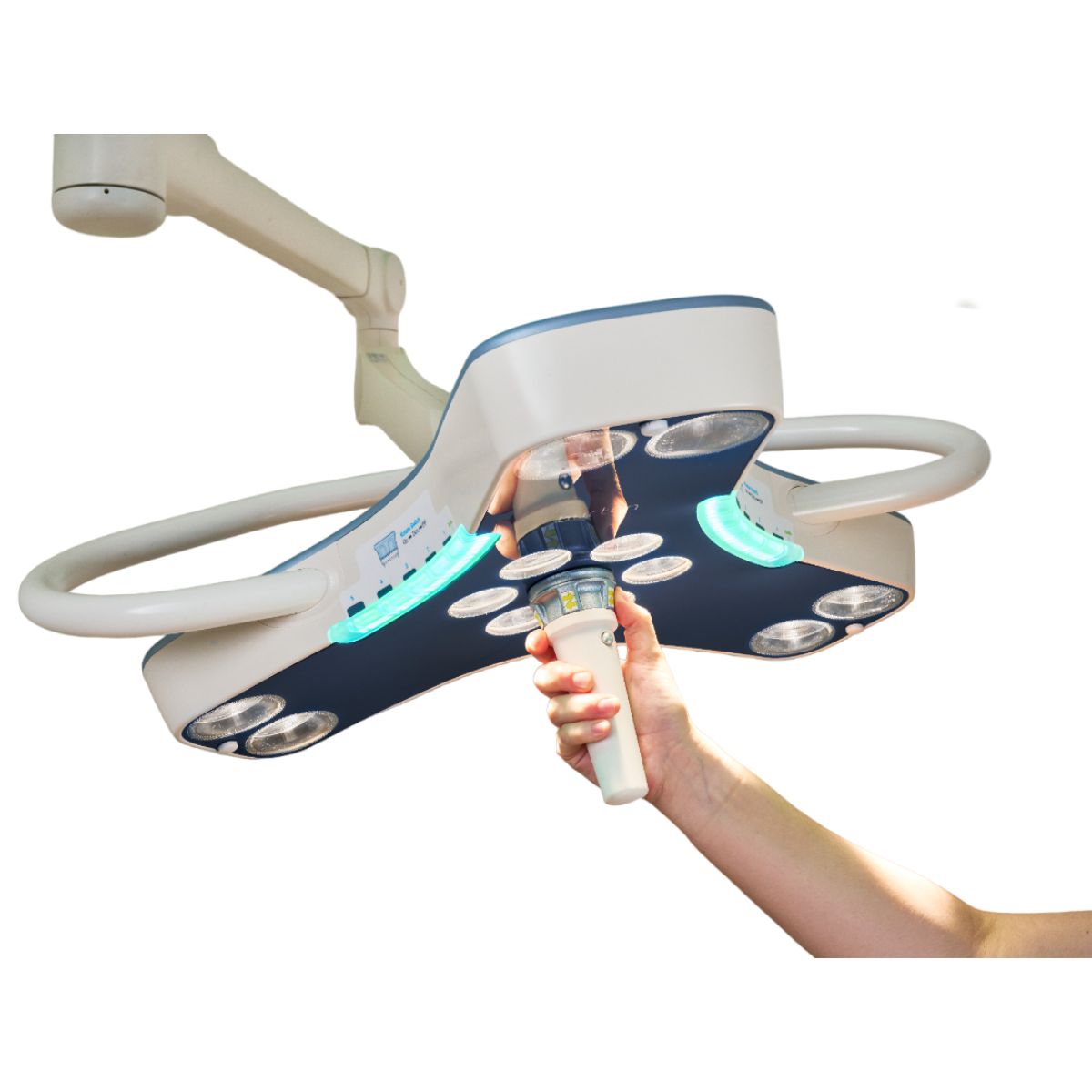

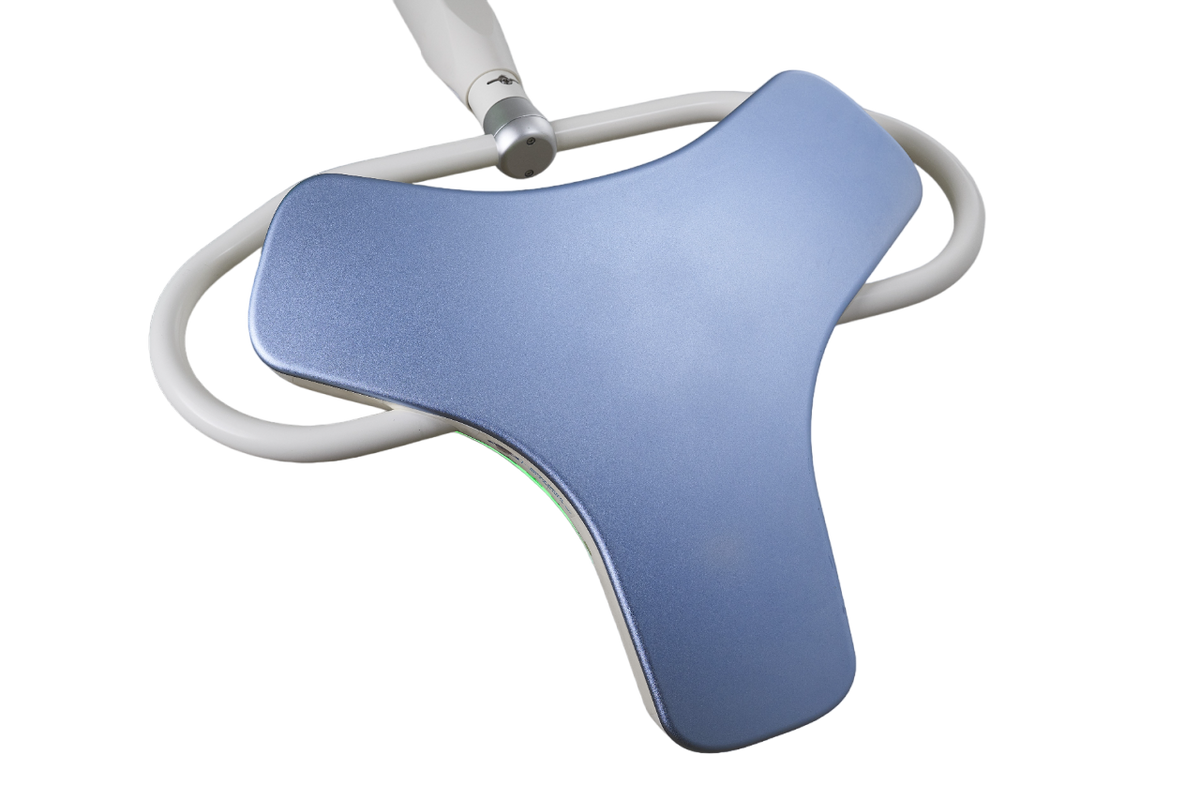

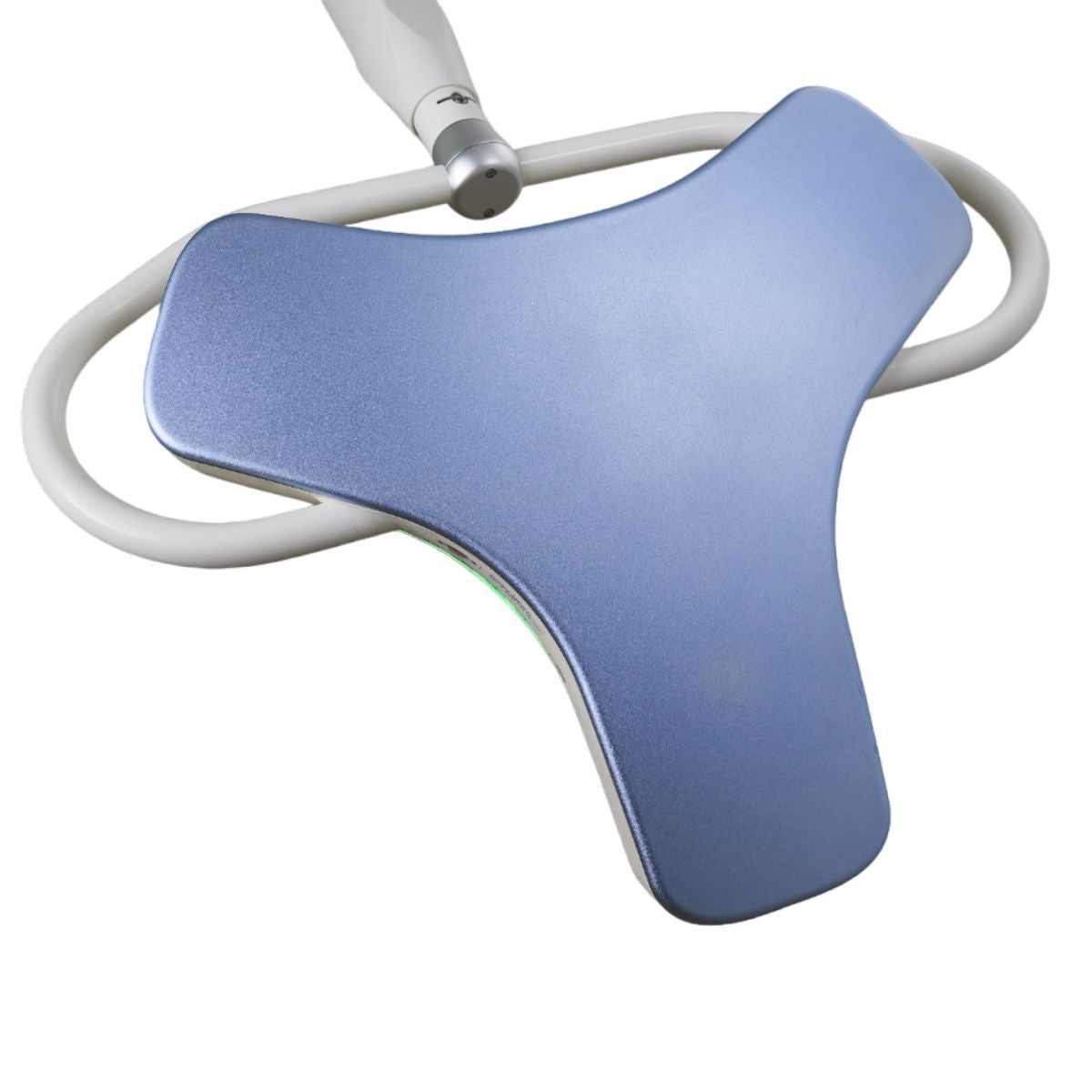

Burton designed the APEX LED light head to be as easy to live with as it is to look into: the 22 in (56 cm) diameter head weighs only 13 lbs (5.9 kg), so its spring-balanced suspension arm holds position without drifting yet repositions with a light touch for total freedom of movement during a case. The tri-lobe housing and reduced-seam, seamless construction (patent pending, USD 29/939,225) minimize surface area compared with traditional surgical lights, so the head wipes down quickly between cases, and the IP42-rated housing stands up to routine OR cleaning and disinfection protocols. LED modules are rated for more than 50,000 hours of service life, and the light draws roughly 80 watts in this single-ceiling configuration.

The AP130B02 is FDA registered and manufactured under Burton's ISO 13485 quality system, and it is listed to UL/IEC 60601-1, IEC 60601-1-6, IEC 60601-2-41, IEC 60601-1-2, and IEC 62471, with CAN/CSA C22.2 No. 6-01 M90 and CE marking for international facilities. It ships backed by Burton's 5-year limited warranty and membership in the EnabLED licensing program for LED luminaires. Mediplies stocks the APEX LED family direct from Burton Medical, so hospitals, ambulatory surgery centers, and specialty clinics can equip a single OR or refresh an entire surgical lighting fleet with a US-assembled, plug-and-play light system backed by a five-year warranty.
