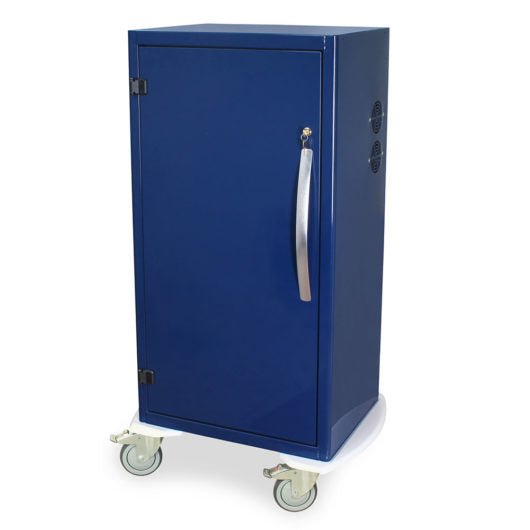

This cabinet incorporates the same positive pressure technology used for vertical endoscope drying, but at a smaller scale designed for the vertical drying and storage of savary dilators and other wire guided dilators. This high volume cabinet is recommended for facilities and clinics with a large quantity of dilators, typically more than 20, as it can store up to 36 Savary-Gilliard® dilators varying in size from 5mm (15 French) to 20mm (60 French) and up to 39” in length. Dilators are hung vertically on six pull out slides for ease of access, with six soft grip dilator holders on each slide. Each dilator is dried quickly using a HEPA filtered, positive pressure fan system with a fully adjustable fan run time that activates each time the cabinet is closed. Each spacious cart comes with your choice of locking options, industry best 5″ quiet rolling Tente® casters, an easy to clean powder coat finish in your choice of colors and a twelve year manufacturers warranty. The DSC36TL-DP cabinet from Harloff provides the final key drying component to help medical facilities with their savary dilator reprocessing.
Achieve the same great benefits of a full endoscope cabinet, but for your Savary-Gilliard® dilators. Provide drying capability and vertical storage of savary dilators with a capacity of up to 36 dilators with easy in/out access for nurses and staff. This durable, medical-grade dilator storage cabinet helps drain excess fluid after savary dilator reprocessing, helping to greatly reduce bacterial growth. Features industry best Tente® casters, your choice of four locking options and soft grip dilator holders.
Specifications & Details
Features
• Positive pressure fan system dries the full Savary-Gilliard® dilators and other wire guided dilators
• Includes six Savary pull out slides that each hold six dilators for easy access to similar sized dilators at one time
• Replaceable HEPA Filter removes 99.7% of particulates, .03 Microns
• Fan run time (from 10 to 180 minutes) is fully adjustable and activated each time the dilator storage cart is closed
• Durable scratch resistant heat sealed powder coat finish
• Each dilator storage cart can hold up to 36 individual dilators, varying in size from 5mm (15 French) to 20mm (60 French) and up to 39” in length
• Choice of lock options: keyless, latch lock, standard key lock or standard electronic lock
• Medical grade electrical system
• Sturdy, fully welded steel body
• Industry best 5” quiet rolling Tente® casters - 1 steering caster & 2 braking casters
• Industry only fully curved protective bumper
• 12-Year Manufacturer’s Warranty on shipments to US and Canada, 5-Year Manufacturer’s Warranty on all other International shipments. 1-Year Limited Warranty on any bought-out parts
Assembled Dimensions
• 51.88” H x 29.88” W x 22” D (131.8 cm H x 75.9 cm W x 55.9 cm D)
• Cart weight: 109 lbs (49.5 kg)
Shipping Dimensions
• Approximate shipping weight: 134 lbs (60.8 kg)
• Approximate Shipping Dims: 60” H x 34” W x 24” D (152.4 cm x 86.4 cm x 61 cm)
