Harloff Quad-Column Mobile Cabinet (MSPM84-22GE)

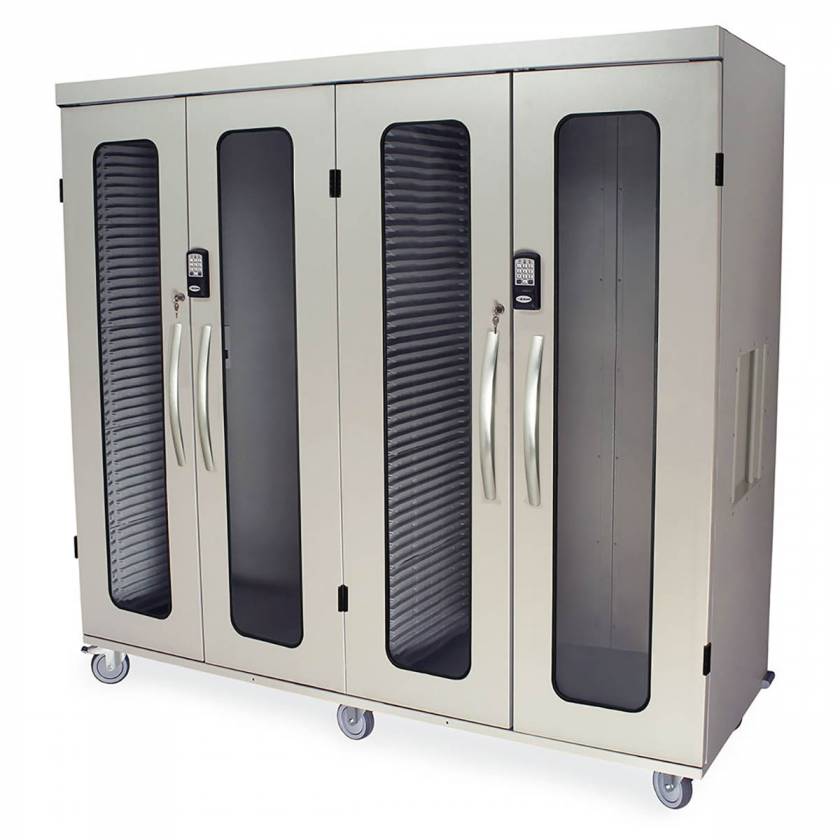

This Harloff Quad Column Mobile Cabinet with Double-Width Open Columns Both Sides and steel panel column walls pairs Harloff's widest MedStor Max configuration with a keyless, code-based locking system instead of a physical key. Like its H+H-panel counterpart, it's built as two full-height, double-wide open bays, one on each side, for departments that need larger storage zones instead of four narrow columns: arthroscopy, cardiology, cath lab, cystoscopy, endovascular, ENT, interventional radiology, laparoscopy, ophthalmology, orthopedics, neurology, urology, and vascular areas all use this Quad Column format to keep procedure supplies organized at the point of care.

Where this configuration differs is the column wall material, solid steel panels in place of Harloff's H+H insertion-track system, giving each column a sturdier, more rigid mounting surface for shelves and accessories in departments that prefer a heavier-duty interior wall. Doors are tempered glass, so staff can check stock levels at a glance, and they swing open a full 270 degrees to stay out of the way during a procedure or fold flush against a wall via recessed pull handles.

Instead of a physical key, this cabinet uses Harloff's electronic pushbutton lock: a keyless, field-programmable lock supporting up to 20 user codes (19 staff codes plus one supervisor override) and rated for roughly 75,000 open cycles before the battery needs replacing, with a mechanical key override built in as a backup. It's manufactured in the USA and eliminates the hassle of physical keys walking off or being duplicated, staff simply enter their code. For departments that need centralized, auditable access control across more users, Harloff also offers keypad locks with LockView 5 software and networked proximity-badge locks on this same cabinet platform.

The cabinet stands 77.75"H x 82.125"W x 30.25"D with a true 24" interior depth, weighs approximately 646 lbs net, and rolls on Harloff's 5" quiet casters (one steering, one braking) for smooth repositioning between rooms. The frame is heat-sealed powder-coat steel construction, and the cabinet ships fully assembled, backed by Harloff's 12-year limited manufacturer's warranty on the structure plus a 1-year limited warranty on bought-out components like the lock and casters.
