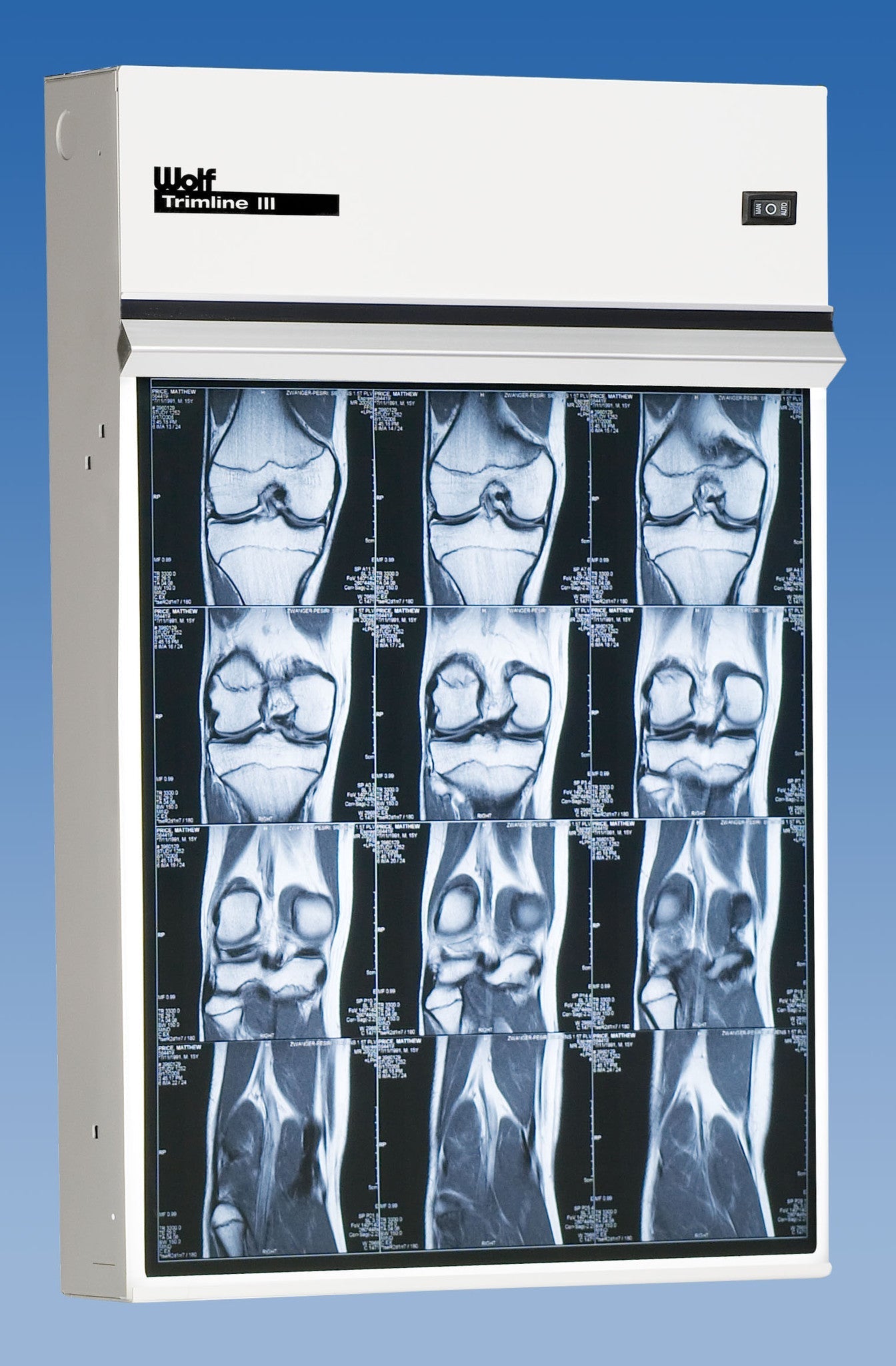

Trimline III Illuminator

The Wolf X-Ray Trimline III Illuminator is the workhorse film illuminator line radiology departments, orthopedic clinics, chiropractic offices, and veterinary imaging suites have relied on for consistent, even film viewing for decades. Trimline III is a build-to-order family — select the configuration below and Wolf assembles anything from a single 14"x17" panel up to a full 6-over-6 bank (12 panels), so you can size the illuminator to the exact reading wall you have, not the other way around.

Every viewing panel in the Trimline III line is built the same way: a 14"x17" viewing area lit by three 15-watt daylight-balanced lamps (included), housed in a 3-1/4" deep, baked-on white polyester powder-coat cabinet for a bright, even, non-glare field. Film is held securely by roller-grip retainers that grip without scratching, so techs can swap films quickly between reads without damaging emulsion.

Trimline III's defining feature is film-activated automatic switching — each panel senses when film is loaded and switches itself on, then off again when the film is pulled. That means no panel is ever left burning unattended, no stray light bleeds across a bank of unused panels to distract from the film actually being read, and heat output (and lamp wear) stays minimized. Multi-panel configurations (2-over-2 and larger) add cluster switches so a whole bank can be powered down together when the room isn't in use, and every unit ships with an 8-foot power cord for flexible placement.

Built for surface mounting (a recessing kit is available for a flush, built-in look), Trimline III units are UL, CSA, and ETL listed, and are offered in both standard voltage and 220V for export and international facilities. Whether you need a single panel for a small treatment room or a 6-over-6 bank for a busy multi-tech reading room, Trimline III scales with you. Buying for a facility? Contact Mediplies for volume and case pricing on any configuration, with fast, insured nationwide shipping.
